Binder
Number Of Poles
- 2
| Article Number | 77 4330 0000 60702 0200 | 77 4330 0000 60702 0500 | 77 4330 0000 60702 1000 |

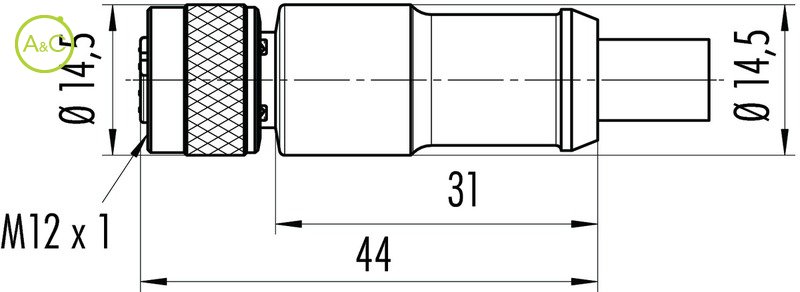

| Connector Diameter | 14.5 mm | 14.5 mm | 14.5 mm |
| Number Of Contacts | 2 contacts | 2 contacts | 2 contacts |
| Connector Locking System | Screw (M12-B) | Screw (M12-B) | Screw (M12-B) |
| Termination | Crimp, moulded | Crimp, moulded | Crimp, moulded |
| Wire Section | 0.25 mm² | 0.25 mm² | 0.25 mm² |
| Protection Degree | IP67 | IP67 | IP67 |
| Mating Cycles | >500 times | >500 times | >500 times |
| Upper Temperature | +85 °C | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C | -25 °C |
| Rated Voltage | 250 | 250 | 250 |
| Rated Impuls Voltage | 2500 V | 2500 V | 2500 V |
| Pollution Degree | 3 | 3 | 3 |
| Overvoltage Categorie | II | II | II |
| Material Group | II | II | II |
| Rated Current (40°) | 4 A | 4 A | 4 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ | 3 mΩ |
| Material Of Contact | CuSn (Bronze) | CuSn (Bronze) | CuSn (Bronze) |
| Plating | Au (Gold) | Au (Gold) | Au (Gold) |
| Material Of Insert | PUR | PUR | PUR |
| Material Of Housing | PUR | PUR | PUR |
| Cable Diameter | 7,8 mm | 7,8 mm | 7,8 mm |
| Product sheet | Download product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
