Binder
Number Of Poles
- 5

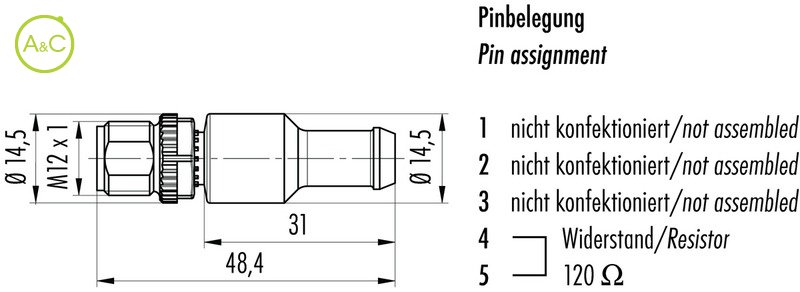

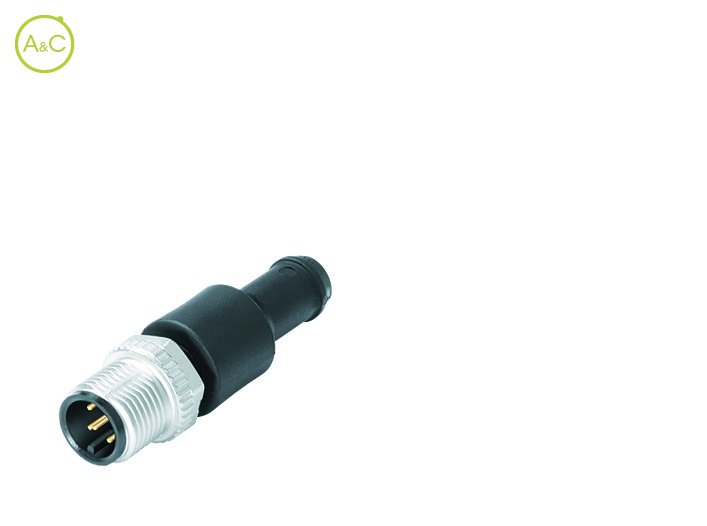

| Article Number | 77 9839 0000 00005 |
| Connector Diameter | 14.5 mm |
| Number Of Contacts | 5 contacts |
| Connector Locking System | Screw (M12-A) |
| Termination | Crimp, moulded |
| Wire Section | 0,1 to 0,75 mm² |
| Protection Degree | IP68 |
| Mating Cycles | >100 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 60 |
| Rated Impuls Voltage | 1500 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 4 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Material Of Insert | PUR |
| Material Of Housing | PUR |
| Cable Diameter | 7,2 mm |
| Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
