Binder
Number Of Poles
- 3+PE
- 6+PE
| Article Number | 79 0233 20 04 |

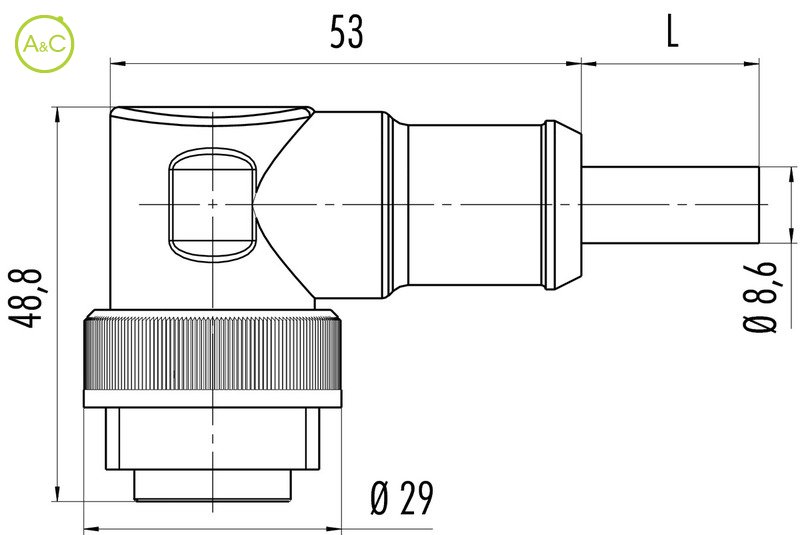

| Connector Diameter | 29 mm |
| Number Of Contacts | 3+PE contacts |
| Connector Locking System | Screw (RD24) |
| Termination | Crimp, moulded |
| Wire Section | 4 x 1,5 mm² |
| Cable Length | 2 mm |
| Protection Degree | IP67 |
| Mating Cycles | >500 times |
| Upper Temperature | +80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 400 |
| Rated Impuls Voltage | 6000 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | III |
| Material Group | III |
| Rated Current (40°) | 16 A |
| Max. Contact Resistance | 5 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Ag (Silver) |
| Material Of Insert | PA 12 |
| Material Of Housing | PUR |
| Cable Diameter | 8,6 mm |
| Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
