Number Of Poles
- 3
- 4
- 5

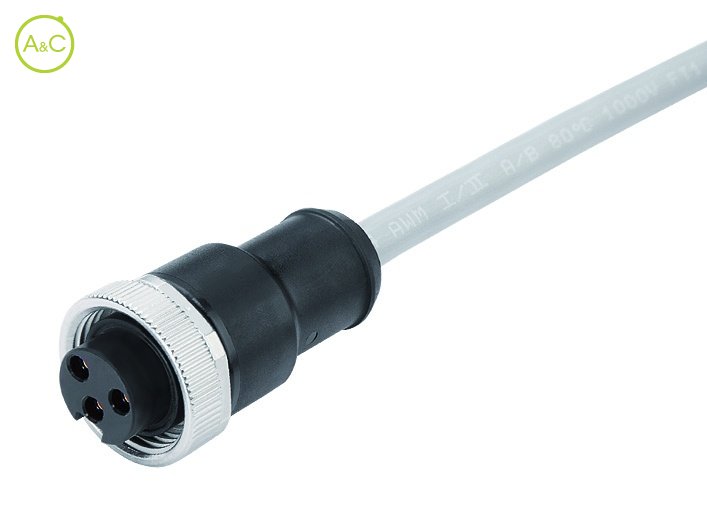

Article Number | 79 2452 20 03 |

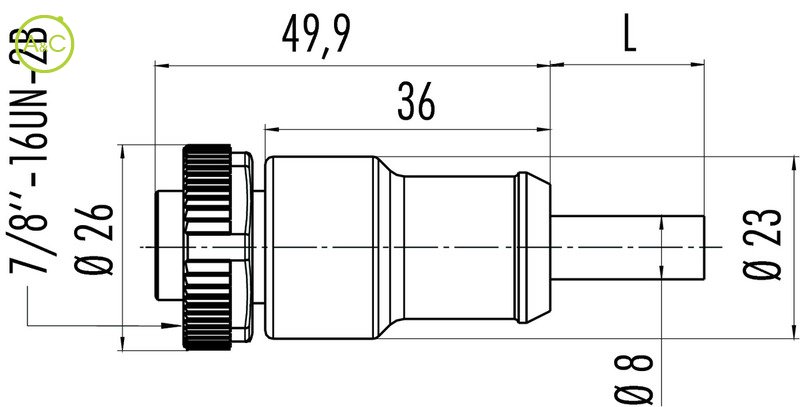

Connector Diameter | 26 mm |
Number Of Contacts | 3 contacts |
Connector Locking System | Screw (7/8"-16 UN) |
Termination | Crimp |
Wire Section | 1.5 mm² |
Cable Length | 2 mm |
Protection Degree | IP68 |
Mating Cycles | >100 times |
Upper Temperature | +80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 300 |
Rated Impuls Voltage | 4000 V |
Pollution Degree | 3 |
Overvoltage Categorie | II |
Material Group | II |
Rated Current (40°) | 12 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuZn (Brass) |
Plating | Au (Gold) |
Material Of Insert | PUR |
Material Of Housing | PUR |
Cable Diameter | 7,4 mm |
Cable | 3 x 1,5 PUR mm² |
Cable Jacket Material | PUR |
Insulation Wire | TPM |
Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
