Binder
Number Of Poles
- 3
- 4

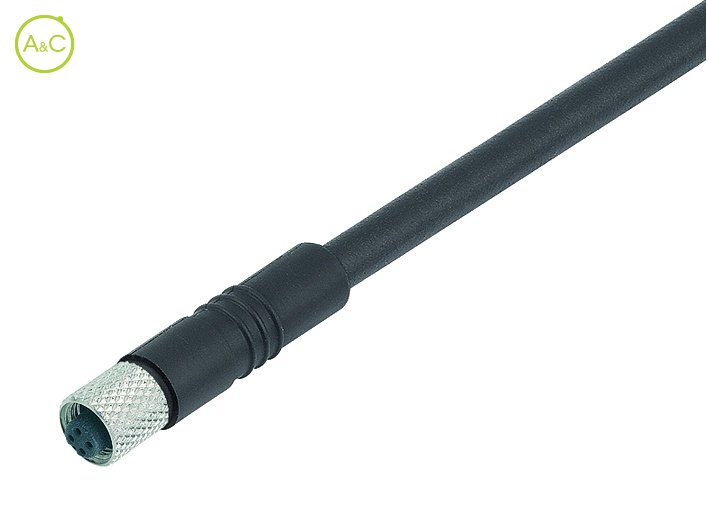

| Article Number | 79 3102 52 03 | 79 3102 32 03 |

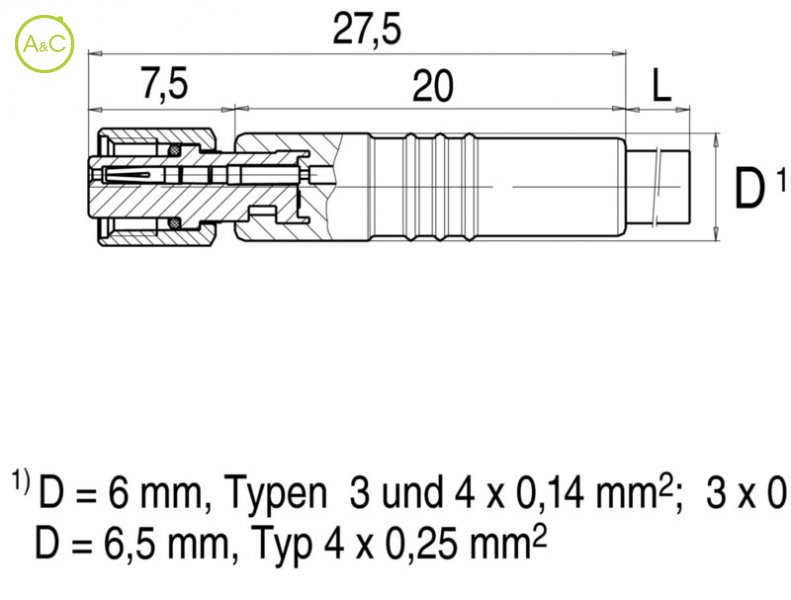

| Connector Diameter | 6.5 mm | 6.5 mm |
| Number Of Contacts | 3 contacts | 3 contacts |
| Connector Locking System | Screw (M5) | Screw (M5) |
| Termination | Crimp, moulded | Crimp, moulded |
| Wire Section | 0.14 mm² | 0.25 mm² |
| Cable Length | 2 mm | 2 mm |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >100 times | >100 times |
| Upper Temperature | +80 °C | +80 °C |
| Lower Temperature | -25 °C | -25 °C |
| Rated Voltage | 60 | 60 |
| Rated Impuls Voltage | 800 V | 800 V |
| Pollution Degree | 3 | 3 |
| Overvoltage Categorie | II | II |
| Material Group | I | I |
| Rated Current (40°) | 1 A | 1 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ |
| Material Of Contact | CuSn (Bronze) | CuSn (Bronze) |
| Plating | Au (Gold) | Au (Gold) |
| Material Of Insert | PUR | PUR |
| Material Of Housing | PUR | PUR |
| Cable Diameter | 3,1 mm | 3,7 mm |
| Cable Jacket Material | PUR | PUR |
| Insulation Wire | PVC | PVC |
| Product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
