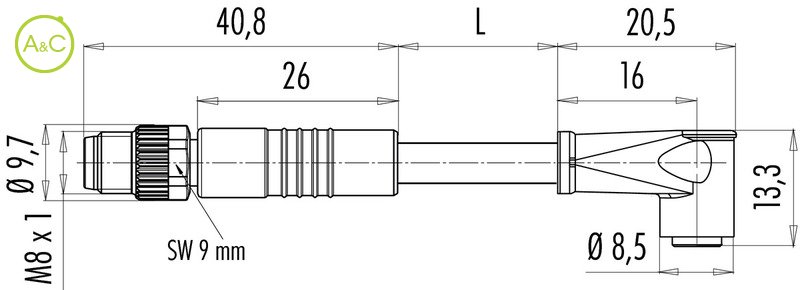

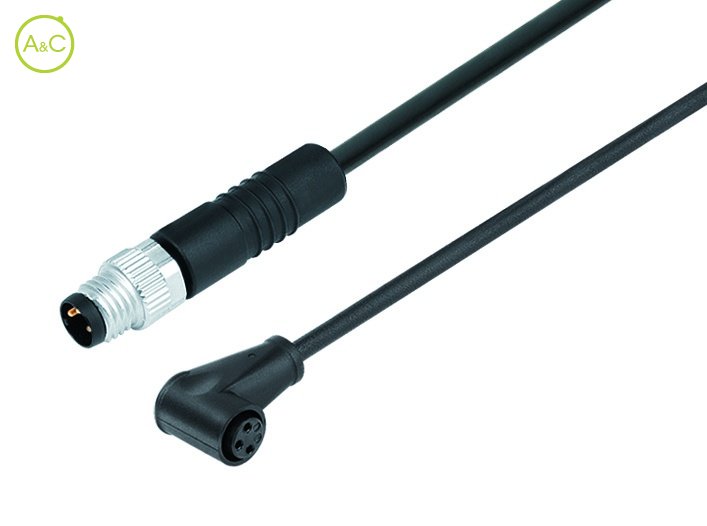

Male cable connector M8x1 - Female angled connector snap-in version M8x1
Meer info over dit merk:
Binder
Binder
Number Of Poles
- 3
- 4
| Article Number | 79 5062 10 03 | 79 5062 20 03 |
| Connector Diameter | 9,7 - 8,5 mm | 9,7 - 8,5 mm |
| Number Of Contacts | 3 contacts | 3 contacts |
| Connector Locking System | Snap-in | Snap-in |
| Termination | Crimp, moulded | Crimp, moulded |
| Wire Section | 0.25 mm² | 0.25 mm² |
| Protection Degree | IP65 | IP65 |
| Mating Cycles | >50 times | >50 times |
| Upper Temperature | +70 °C | +70 °C |
| Lower Temperature | -25 °C | -25 °C |
| Rated Voltage | 60 | 60 |
| Rated Impuls Voltage | 1500 V | 1500 V |
| Pollution Degree | 3 | 3 |
| Overvoltage Categorie | II | II |
| Material Group | II | II |
| Rated Current (40°) | 4 A | 4 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ |
| Material Of Contact | Pin CuZn (Brass), Socket (Bronze) | Pin CuZn (Brass), Socket (Bronze) |
| Plating | Au (Gold) | Au (Gold) |
| Material Of Insert | PUR | PUR |
| Material Of Housing | PUR | PUR |
| Cable Diameter | 4,5 mm | 4,5 mm |
| Cable | 3x0,25 PUR mm² | 3x0,25 PUR mm² |
| Cable Jacket Material | PUR | PUR |
| Insulation Wire | PVC | PVC |
| Product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
