Number Of Poles
- 8

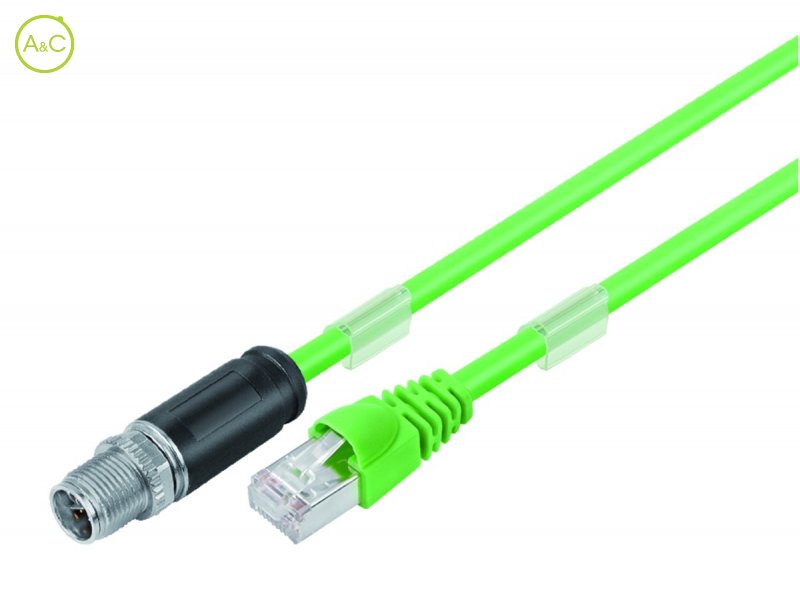

Article Number | 79 9723 020 08 | 79 9723 050 08 | 79 9723 100 08 |

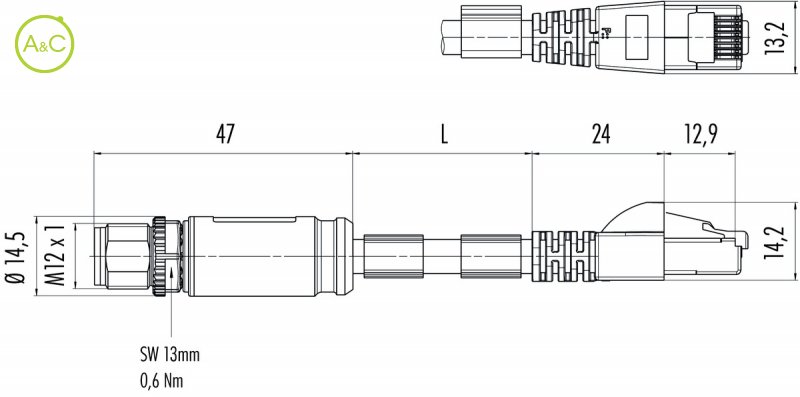

Connector Diameter | 14.5 mm | 14.5 mm | 14.5 mm |
Number Of Contacts | 8 contacts | 8 contacts | 8 contacts |
Connector Locking System | Screw (M12-X) | Screw (M12-X) | Screw (M12-X) |
Termination | Crimp, moulded | Crimp, moulded | Crimp, moulded |
Protection Degree | IP67 | IP67 | IP67 |
Mating Cycles | >100 times | >100 times | >100 times |
Upper Temperature | +85 °C | +85 °C | +85 °C |
Lower Temperature | -40 °C | -40 °C | -40 °C |
Rated Voltage | 50 AC, 60 DC | 50 AC, 60 DC | 50 AC, 60 DC |
Pollution Degree | 3 | 3 | 3 |
Overvoltage Categorie | II | II | II |
Material Group | II | II | II |
Rated Current (40°) | 0.5 A | 0.5 A | 0.5 A |
Max. Contact Resistance | 10 mΩ | 10 mΩ | 10 mΩ |
Material Of Contact | CuZn (Brass) | CuZn (Brass) | CuZn (Brass) |
Plating | Au (Gold) | Au (Gold) | Au (Gold) |
Material Of Insert | PA | PA | PA |
Material Of Housing | PUR | PUR | PUR |
Cable Diameter | 6,2 mm | 6,2 mm | 6,2 mm |
Cable Jacket Material | PUR green | PUR green | PUR green |
Insulation Wire | PE | PE | PE |
Product sheet | Download product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
