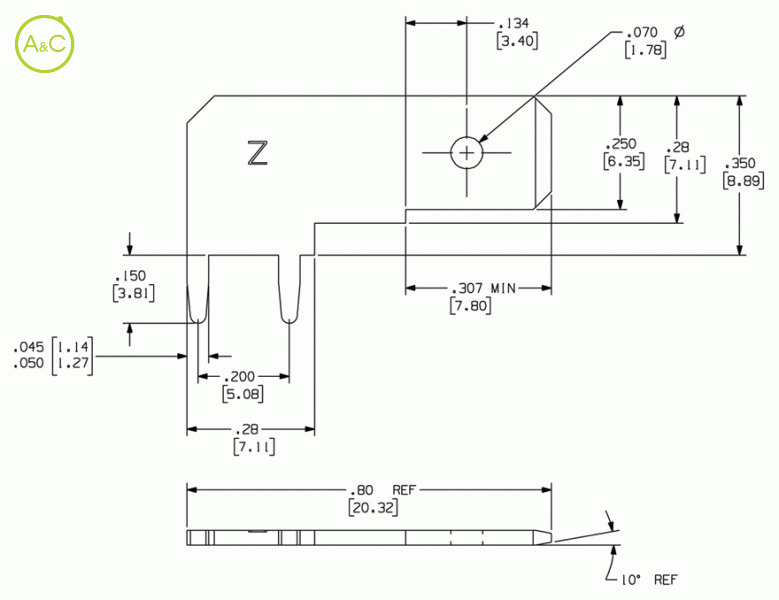

0.250" (6.35mm) Right Angle Tabs / Quick Disconnect Terminals

  • Tab length is 20,32 mm
  • General
Article Number 901
Packaging Loose
Extra Description Tab length is 20,32 mm
Material Thickness / Type 0.032" (0.81mm) C26000 Brass
Standard Finish 100% Tin over Copper
Current Rating Ul 20 Amperes
Current Rating C-ul 20 Amperes
Ul File Number E146208
Applicator System ZPT92-250
Mounting Type Outward or Inward Splay
Mounting Hole Diameter 0.058" ±0.003" (1.47mm ±0.076mm)
Pieces Per Reel (loose Part No.) NA
Product sheet Download product sheet
