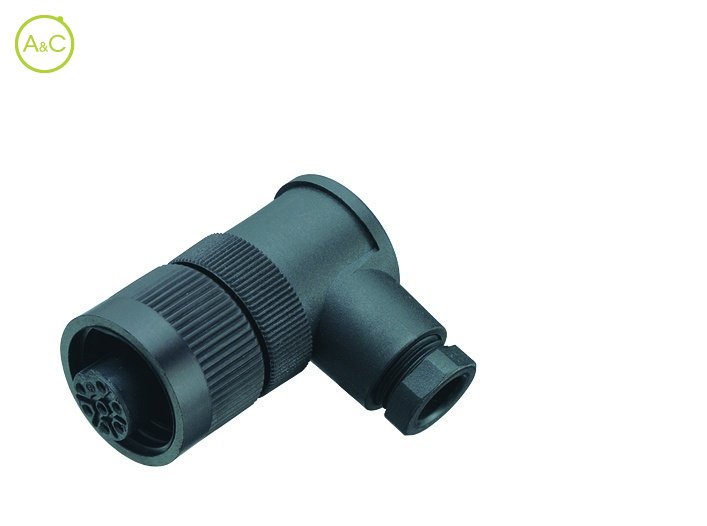

Female angled connector

PG9

99-0210-70-04

99-0210-70-04

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Number Of Poles

3+PE
6+PE

Article Number	99 0210 70 04

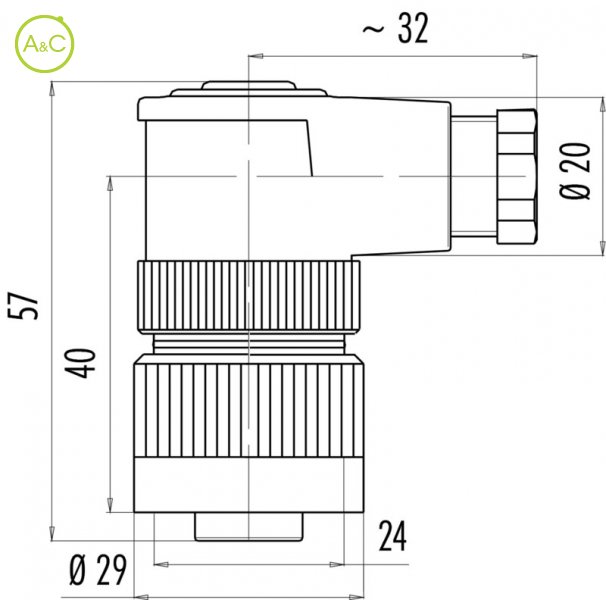

Connector Diameter	29 mm
Number Of Contacts	3+PE contacts
Connector Locking System	Screw (RD24)
Termination	Screw
Wire Section	0,5 - 2,5 mm²
Protection Degree	IP67*
Mating Cycles	>500 times
Upper Temperature	+100 °C
Lower Temperature	-40 °C
Rated Voltage	400
Rated Impuls Voltage	6000 V
Pollution Degree	3
Overvoltage Categorie	III
Material Group	III
Rated Current (40°)	16 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze), CuZn (Brass)
Plating	Ag (Silver)
Material Of Insert	PBT (UL94 V-0)
Material Of Housing	PBT (UL94 V-0)
Cable Outlet	6-8 mm
Remark *	*IP65 for cable-Ø 6-7 mm
Product sheet	Download product sheet

Article Number	99 0214 70 07	99 0218 70 07	99 0202 70 07
Connector Diameter	29 mm	29 mm	29 mm
Number Of Contacts	6+PE contacts	6+PE contacts	6+PE contacts
Connector Locking System	Screw (RD24)	Screw (RD24)	Screw (RD24)
Termination	Solder	Screw	Crimp
Wire Section	0.75 mm²	0,34 - 1,5 mm²	0,14 - 1,5 mm²
Protection Degree	IP67*	IP67*	IP67*
Mating Cycles	>500 times	>500 times	>500 times
Upper Temperature	+100 °C	+100 °C	+100 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	250	250	250
Rated Impuls Voltage	4000 V	4000 V	4000 V
Pollution Degree	3	3	3
Overvoltage Categorie	III	III	III
Material Group	III	III	III
Rated Current (40°)	10 A	10 A	10 A
Max. Contact Resistance	5 mΩ	5 mΩ	5 mΩ
Material Of Contact	CuSn (Bronze), CuZn (Brass)	CuSn (Bronze), CuZn (Brass)	CuSn (Bronze), CuZn (Brass)
Plating	Ag (Silver)	Ag (Silver)	Ag (Silver)
Material Of Insert	PBT (UL94 V-0)	PBT (UL94 V-0)	PBT (UL94 V-0)
Material Of Housing	PBT (UL94 V-0)	PBT (UL94 V-0)	PBT (UL94 V-0)
Cable Outlet	6-8 mm	6-8 mm	6-8 mm
Remark *	*IP65 for cable-Ø 6-7 mm	*IP65 for cable-Ø 6-7 mm	*IP65 for cable-Ø 6-7 mm
Product sheet	Download product sheet	Download product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
