Number Of Poles
- 8

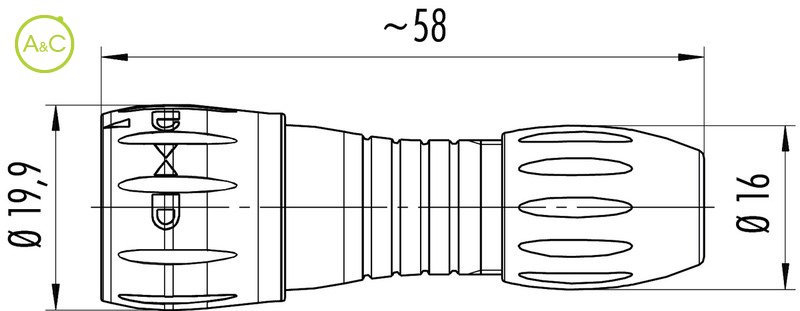

Article Number | 99 0771 000 08 | 99 0771 001 08 | 99 0771 002 08 |
Connector Diameter | 19.9 mm | 19.9 mm | 19.9 mm |
Number Of Contacts | 8 contacts | 8 contacts | 8 contacts |
Connector Locking System | Bayonet | Bayonet | Bayonet |
Termination | Solder | Solder | Solder |
Wire Section | 0.25 mm² | 0.25 mm² | 0.25 mm² |
Protection Degree | IP67 | IP67 | IP67 |
Mating Cycles | >5000 times | >5000 times | >5000 times |
Upper Temperature | +85 °C | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C | -25 °C |
Rated Voltage | 175 | 175 | 175 |
Rated Impuls Voltage | 1750 V | 1750 V | 1750 V |
Pollution Degree | 2 | 2 | 2 |
Overvoltage Categorie | II | II | II |
Material Group | II | II | II |
Rated Current (40°) | 2 A | 2 A | 2 A |
Max. Contact Resistance | 15 mΩ | 15 mΩ | 15 mΩ |
Material Of Contact | CuZn (Brass) | CuZn (Brass) | CuZn (Brass) |
Plating | Au (Gold) | Au (Gold) | Au (Gold) |
Material Of Insert | PA (UL 94 H-B) | PA (UL 94 H-B) | PA (UL 94 H-B) |
Material Of Housing | PA (UL 94 V-0) | PA (UL 94 V-0) | PA (UL 94 V-0) |
Product sheet | Download product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
