Binder
Number Of Poles
- 2
- 3
- 4
- 5
- 7
- 8

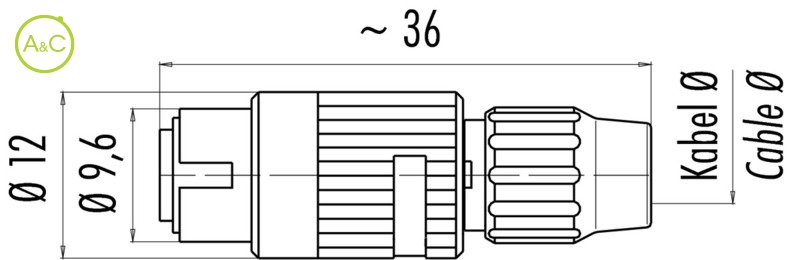

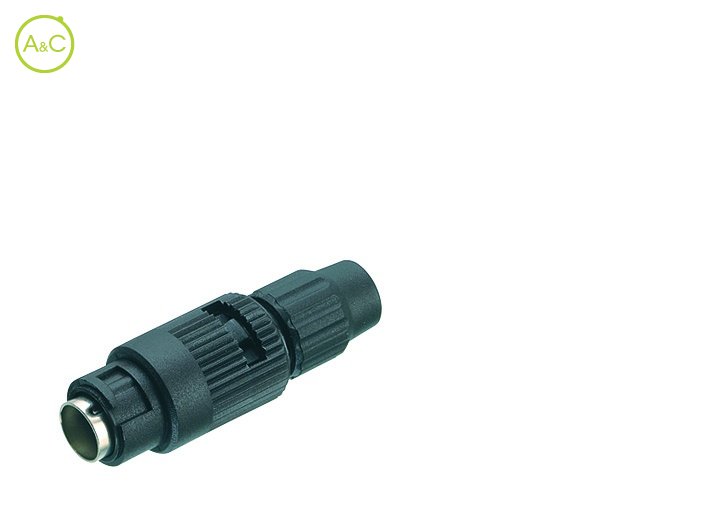

| Article Number | 99 0971 100 02 | 99 0971 102 02 |
| Connector Diameter | 12 mm | 12 mm |
| Number Of Contacts | 2 contacts | 2 contacts |
| Connector Locking System | Bayonet | Bayonet |
| Termination | Solder | Solder |
| Wire Section | 0.25 mm² | 0.25 mm² |
| Protection Degree | IP40 | IP40 |
| Mating Cycles | >500 times | >500 times |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 125 | 125 |
| Rated Impuls Voltage | 1500 V | 1500 V |
| Pollution Degree | 1 | 1 |
| Overvoltage Categorie | II | II |
| Material Group | III | III |
| Rated Current (40°) | 4 A | 4 A |
| Max. Contact Resistance | 3 mΩ | 3 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Plating | Au (Gold) | Au (Gold) |
| Material Of Insert | PA (UL 94 V-0) | PA (UL 94 V-0) |
| Material Of Housing | PA (UL 94 HB) | PA (UL 94 HB) |
| Product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
