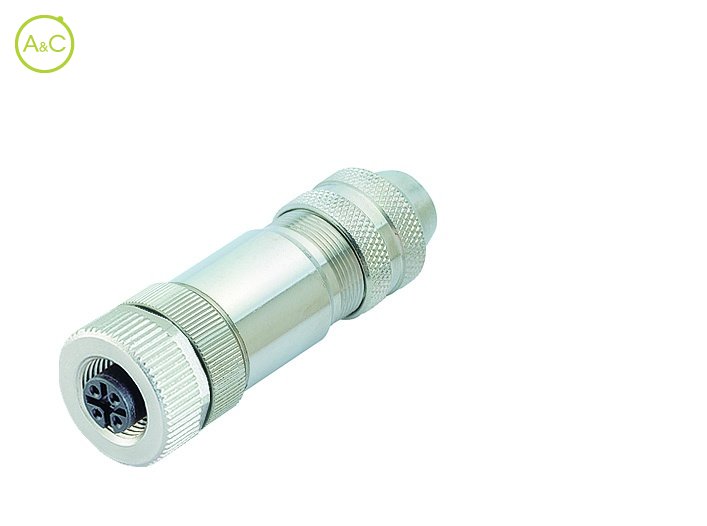

Female cable connector

Heeft u nog vragen over dit product?

Meer info over dit merk:

Article Number	99 1430 810 04

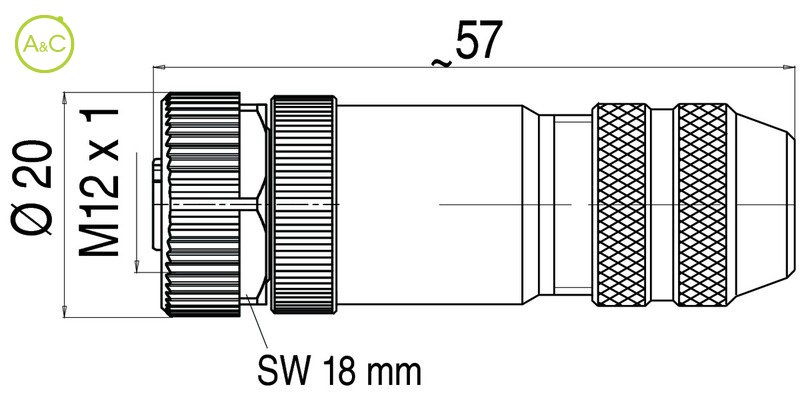

Connector Diameter	20 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-B)
Termination	Screw
Wire Section	0.75 mm²
Protection Degree	IP67
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	PA, zinc diecasting nickel plated
Product sheet	Download product sheet

Article Number	99 1436 810 05	99 1436 910 05	99 1436 935 05
Connector Diameter	20 mm	20 mm	20 mm
Number Of Contacts	5 contacts	5 contacts	5 contacts
Connector Locking System	Screw (M12-B)	Screw (M12-B)	Screw (M12-B)
Termination	Screw	Screw	Screw
Wire Section	0.75 mm²	0.75 mm²	0.75 mm²
Protection Degree	IP67	IP67	IP67
Mating Cycles	>100 times	>100 times	>100 times
Upper Temperature	+85 °C	+85 °C	+85 °C
Lower Temperature	-40 °C	-40 °C	-40 °C
Rated Voltage	125	125	125
Rated Impuls Voltage	1500 V	1500 V	1500 V
Pollution Degree	3	3	3
Overvoltage Categorie	II	II	II
Material Group	III	III	III
Rated Current (40°)	4 A	4 A	4 A
Max. Contact Resistance	3 mΩ	3 mΩ	3 mΩ
Material Of Contact	CuZn (Brass)	CuZn (Brass)	CuZn (Brass)
Plating	Au (Gold)	Au (Gold)	Au (Gold)
Material Of Insert	PA	PA	PA
Material Of Housing	PA, zinc diecasting nickel plated	PA, zinc diecasting nickel plated	PA, zinc diecasting nickel plated
Product sheet	Download product sheet	Download product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
