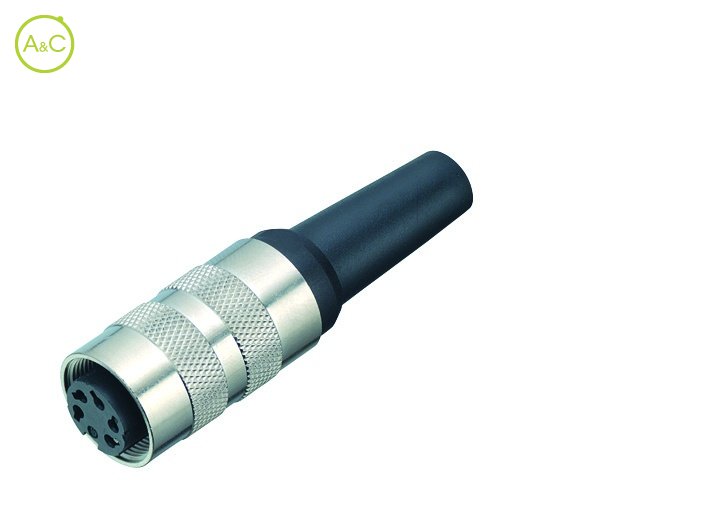

Female cable connector

Heeft u nog vragen over dit product?

Meer info over dit merk:

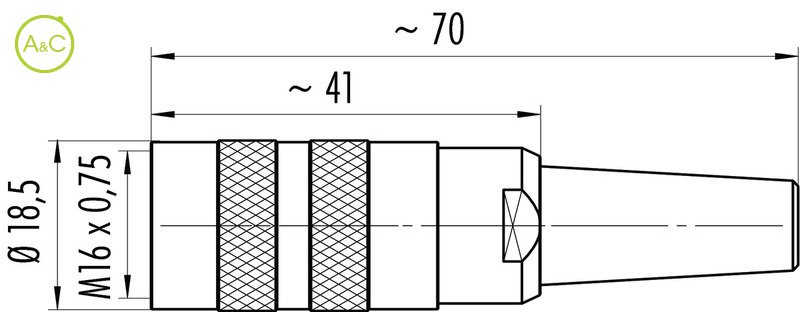

Article Number	99 2006 220 03
Connector Diameter	18.5 mm
Number Of Contacts	3 contacts
Connector Locking System	Screw (M16)
Termination	Screw
Wire Section	0,25 - 1,5 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250 (32)
Rated Impuls Voltage	1500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	7 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver) or Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	CuZn (Brass nickel plated)
Cable Outlet	6-8 mm
Remark *	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Product sheet	Download product sheet

Article Number	99 2010 220 04
Connector Diameter	18.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M16)
Termination	Screw
Wire Section	0,25 - 1,5 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250 (32)
Rated Impuls Voltage	1500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	6 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver) or Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	CuZn (Brass nickel plated)
Cable Outlet	6-8 mm
Remark *	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Product sheet	Download product sheet

Article Number	99 2014 220 05
Connector Diameter	18.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M16)
Termination	Screw
Wire Section	0,25 - 1,5 mm²
Protection Degree	IP40
Mating Cycles	>500 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250 (32)
Rated Impuls Voltage	1500 V
Pollution Degree	1 (2)*
Overvoltage Categorie	I (II)*
Material Group	III
Rated Current (40°)	6 A
Max. Contact Resistance	5 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Ag (Silver) or Au (Gold)
Material Of Insert	PBT (UL 94 V-0)
Material Of Housing	CuZn (Brass nickel plated)
Cable Outlet	6-8 mm
Remark *	*In case of pollution degree 2, overvoltage category II rated voltage is reduced to 32 V.
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
