Binder
Number Of Poles
- 2+PE

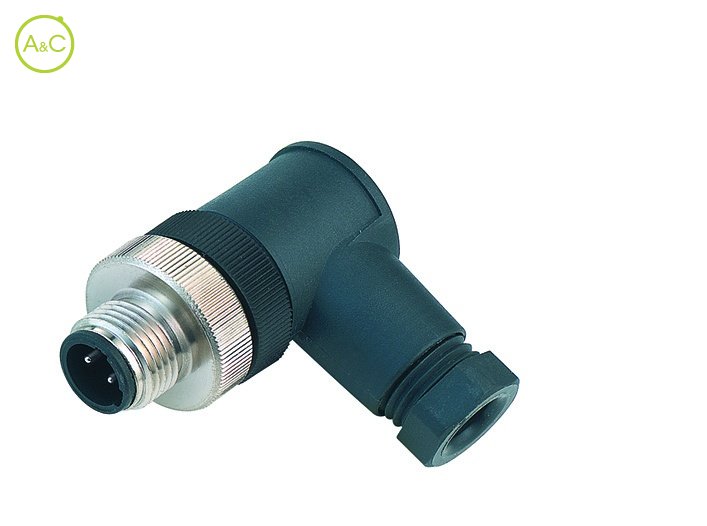

| Article Number | 99 2429 24 03 | 99 2429 52 03 |

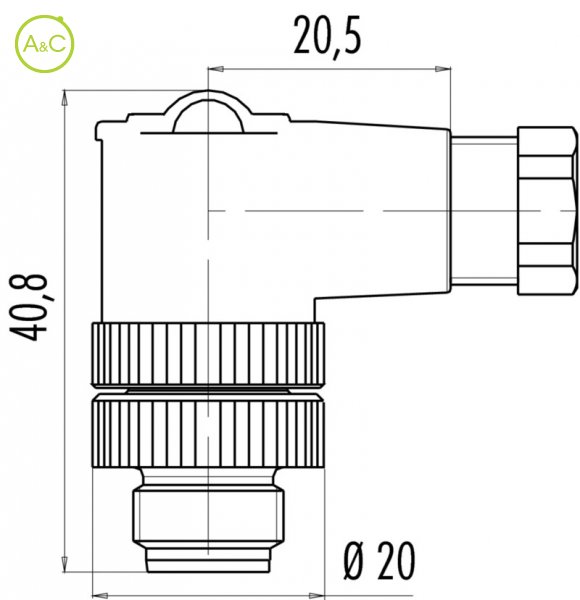

| Connector Diameter | 20 mm | 20 mm |
| Number Of Contacts | 2+PE contacts | 2+PE contacts |
| Connector Locking System | 1/2" UNF | 1/2" UNF |
| Termination | Screw | Screw |
| Wire Section | 0.75 mm² | 0.75 mm² |
| Protection Degree | IP67 | IP67 |
| Mating Cycles | >50 times | >50 times |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -25 °C | -25 °C |
| Rated Voltage | 250 | 250 |
| Rated Impuls Voltage | 2500 V | 2500 V |
| Pollution Degree | 3 | 3 |
| Overvoltage Categorie | II | II |
| Material Group | II | II |
| Rated Current (40°) | 4 A | 4 A |
| Max. Contact Resistance | 8 mΩ | 8 mΩ |
| Material Of Contact | CuZn (Brass) | CuZn (Brass) |
| Plating | CuSnZn (Optalloy) | CuSnZn (Optalloy) |
| Material Of Insert | PA | PA |
| Material Of Housing | PA | PA |
| Product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
