Number Of Poles
- 2+PE
- 3+PE
- 4+PE

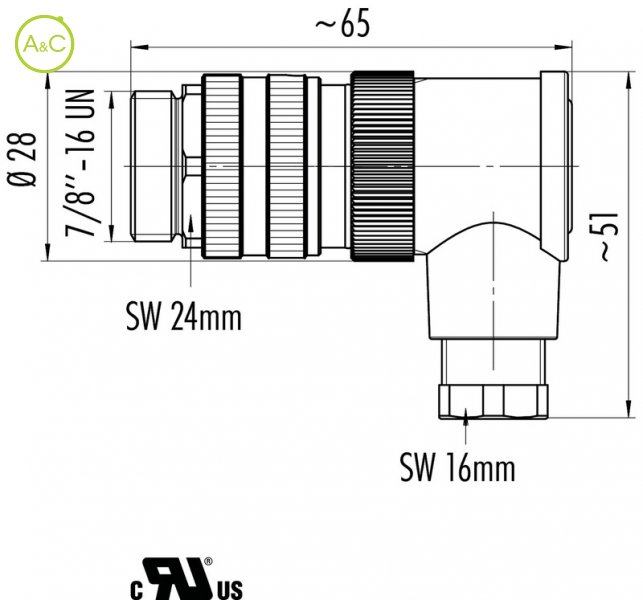

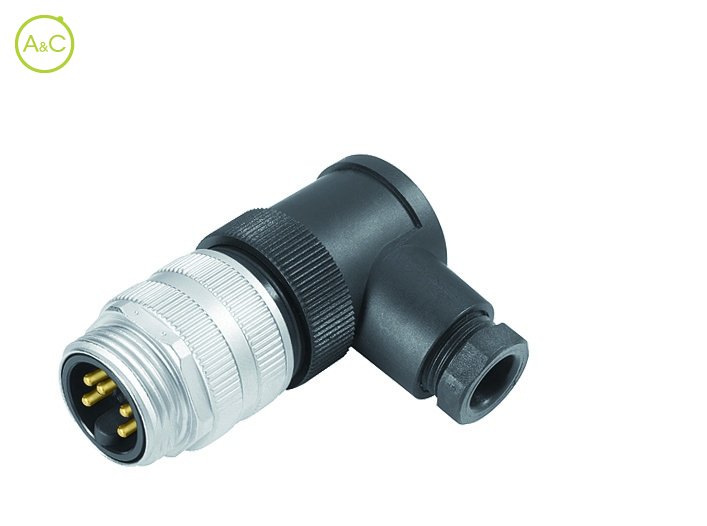

Article Number | 99 2441 52 03 |
Connector Diameter | 28 mm |
Number Of Contacts | 2+PE contacts |
Connector Locking System | Screw (7/8"-16 UN) |
Termination | Screw |
Wire Section | 1.5 mm² |
Protection Degree | IP67 |
Mating Cycles | >50 times |
Upper Temperature | +85 °C |
Lower Temperature | -25 °C |
Rated Voltage | 300 (UL 600) |
Rated Impuls Voltage | 4000 V |
Pollution Degree | 3 |
Overvoltage Categorie | III |
Material Group | III |
Rated Current (40°) | 12 A |
Max. Contact Resistance | 3 mΩ |
Material Of Contact | CuZn (Brass) |
Plating | Au (Gold) |
Material Of Insert | PUR/PA (UL 94 HB) |
Material Of Housing | PBT (UL 94 V-0) |
Cable Outlet | 6-8 mm |
Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
