Binder
Number Of Poles
- 3
- 4
| Article Number | 99 3379 110 03 |

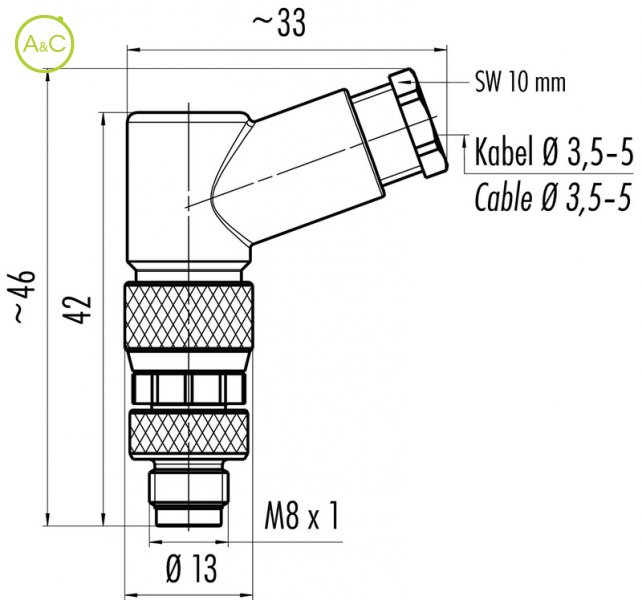

| Connector Diameter | 13 mm |
| Number Of Contacts | 3 contacts |
| Connector Locking System | Screw (M8) |
| Termination | Screw |
| Wire Section | 0,14 - 0,5 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >100 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 60 |
| Rated Impuls Voltage | 800 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | III |
| Rated Current (40°) | 4 A |
| Max. Contact Resistance | 3 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Material Of Insert | PA (UL 94 HB) |
| Material Of Housing | PBT/PA/Zinc diecasting |
| Cable Outlet | 3,5-5 mm |
| Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
