Number Of Poles
- 3
- 4

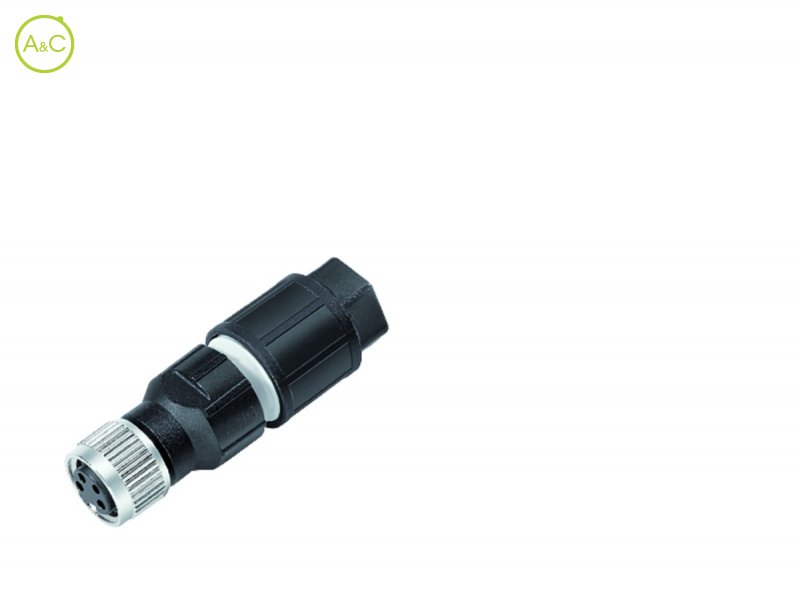

Article Number | 99 3400 500 03 | 99 3400 550 03 |
Connector Diameter | 10 mm | 10 mm |
Number Of Contacts | 3 contacts | 3 contacts |
Connector Locking System | Screw (M8) | Screw (M8) |
Termination | Cutting clamping | Cutting clamping |
Wire Section | 0,08-0,25 mm² | 0,25-0,5 mm² |
Protection Degree | IP67 | IP67 |
Upper Temperature | +85 °C | +85 °C |
Lower Temperature | -25 °C | -25 °C |
Rated Voltage | 60 | 60 |
Rated Impuls Voltage | 800 V | 800 V |
Pollution Degree | 3 | 3 |
Overvoltage Categorie | II | II |
Material Group | III | III |
Rated Current (40°) | 4 A | 4 A |
Max. Contact Resistance | 5 mΩ | 5 mΩ |
Material Of Contact | CuSn (Bronze) | CuSn (Bronze) |
Plating | Au (Gold) | Au (Gold) |
Material Of Insert | TPU | TPU |
Cable Outlet | 2,5-5,2 mm | 2,5-5,2 mm |
Wire Gauge | 28-24 AWG | 24-20 AWG |
Product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
