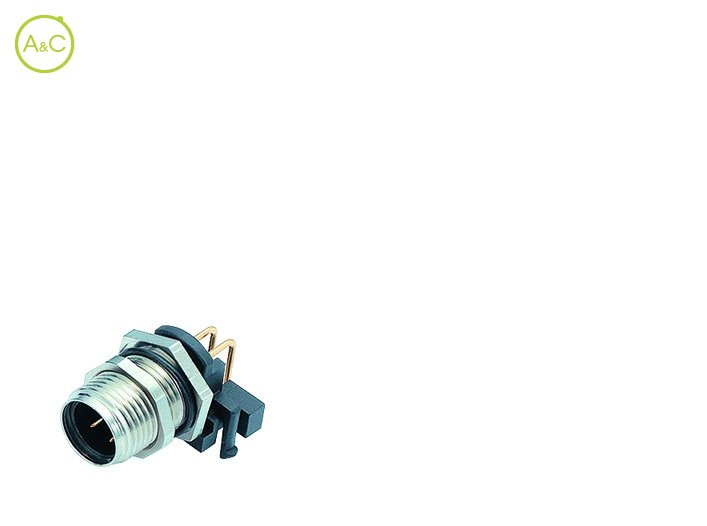

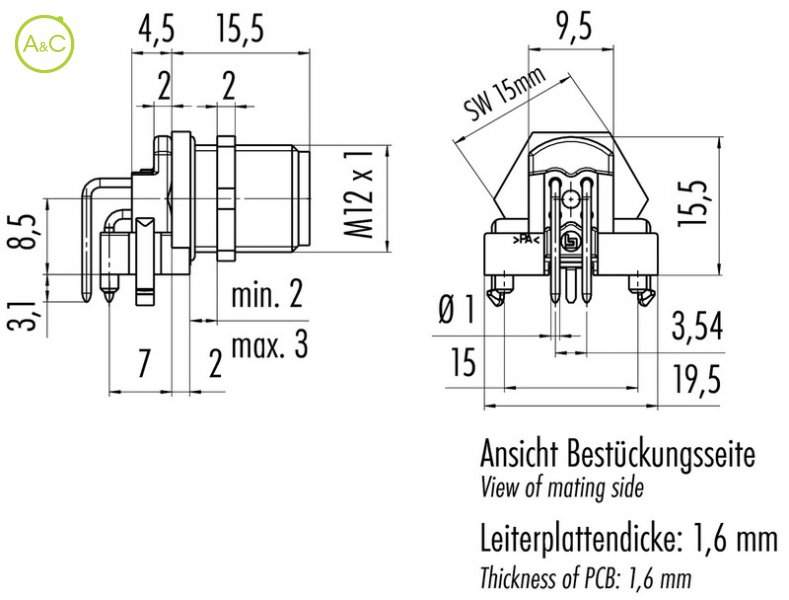

Male receptacle

for PCB assembly, angled
UL-approval

99-3431-202-04

99-3431-202-04

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Number Of Poles

4
4 (with shielding sheet)
5
5 (with shielding sheet)
8
8 (with shielding sheet)

Article Number	99 3431 202 04
Connector Diameter	19.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-A)
Termination	Dip solder
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Article Number	99 3431 601 04
Connector Diameter	19.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-A)
Termination	Dip solder
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Article Number	99 3441 202 05
Connector Diameter	19.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Dip solder
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Article Number	99 3441 601 05
Connector Diameter	19.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Dip solder
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Article Number	99 3481 202 08
Connector Diameter	19.5 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M12-A)
Termination	Dip solder
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	600
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Article Number	99 3481 601 08
Connector Diameter	19.5 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M12-A)
Termination	Dip solder
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	600
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuZn (Brass)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
