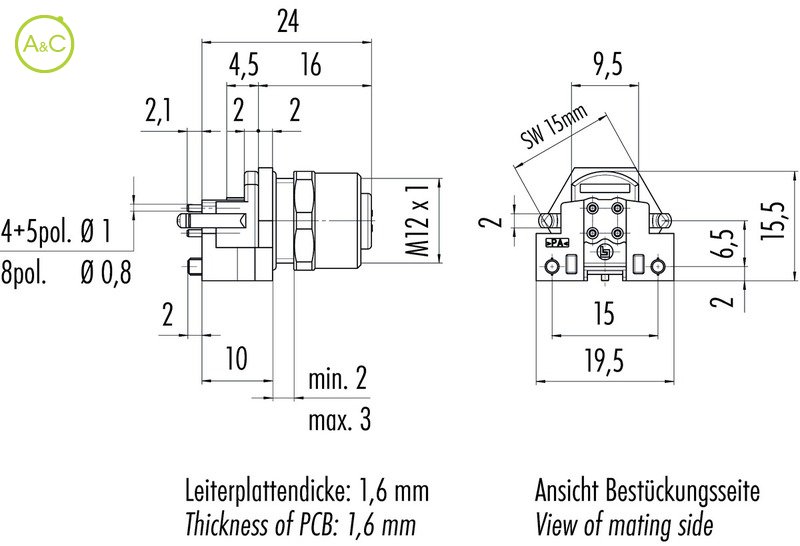

Female receptacle

for PCB assembly, straight
UL-approval

99-3432-200-04

99-3432-200-04

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Meer info over dit merk:

Number Of Poles

4
4 (with shielding sheet)
5
5 (with shielding sheet)
8
8 (with shielding sheet)

Article Number	99 3432 200 04
Connector Diameter	19.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-A)
Termination	Dip solder
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Article Number	99 3432 458 04
Connector Diameter	19.5 mm
Number Of Contacts	4 contacts
Connector Locking System	Screw (M12-A)
Termination	Dip solder
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	250
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Article Number	99 3442 200 05
Connector Diameter	19.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Dip solder
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Article Number	99 3442 458 05
Connector Diameter	19.5 mm
Number Of Contacts	5 contacts
Connector Locking System	Screw (M12-A)
Termination	Dip solder
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	125
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	4 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Article Number	99 3482 200 08
Connector Diameter	19.5 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M12-A)
Termination	Dip solder
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Article Number	99 3482 458 08
Connector Diameter	19.5 mm
Number Of Contacts	8 contacts
Connector Locking System	Screw (M12-A)
Termination	Dip solder
Protection Degree	IP68
Mating Cycles	>100 times
Upper Temperature	+85 °C
Lower Temperature	-40 °C
Rated Voltage	60
Rated Impuls Voltage	800 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	2 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PA
Material Of Housing	CuZn (Brass nickel plated)
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
