Connectoren
Terug naar productoverzicht
Binder
Number Of Poles
- 4

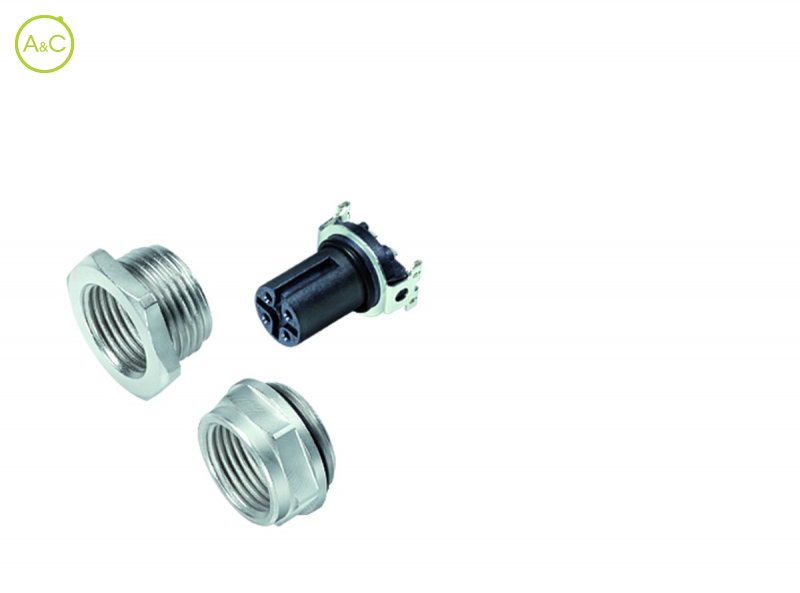

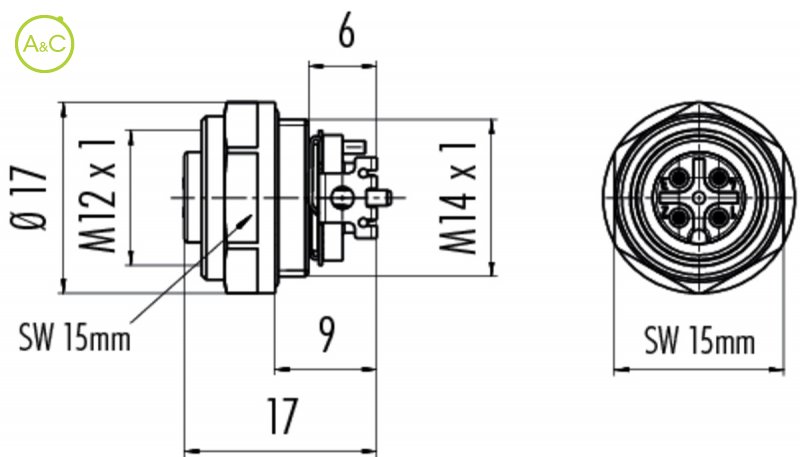

| Article Number | 99 3732 401 04 | 99 3732 402 04 |
| Connector Diameter | 19 mm | 19 mm |
| Number Of Contacts | 4 contacts | 4 contacts |
| Connector Locking System | Screw (M12-D) | Screw (M12-D) |
| Termination | SMT | SMT |
| Upper Temperature | +85 °C | +85 °C |
| Lower Temperature | -40 °C | -40 °C |
| Rated Voltage | 250 | 250 |
| Rated Impuls Voltage | 2500 V | 2500 V |
| Rated Current (40°) | 4 A | 4 A |
| Material Of Contact | CuSn (Bronze) | CuSn (Bronze) |
| Plating | Au (Gold) | Au (Gold) |
| Material Of Insert | LCP | LCP |
| Product sheet | Download product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
