Binder
Number Of Poles
- 8

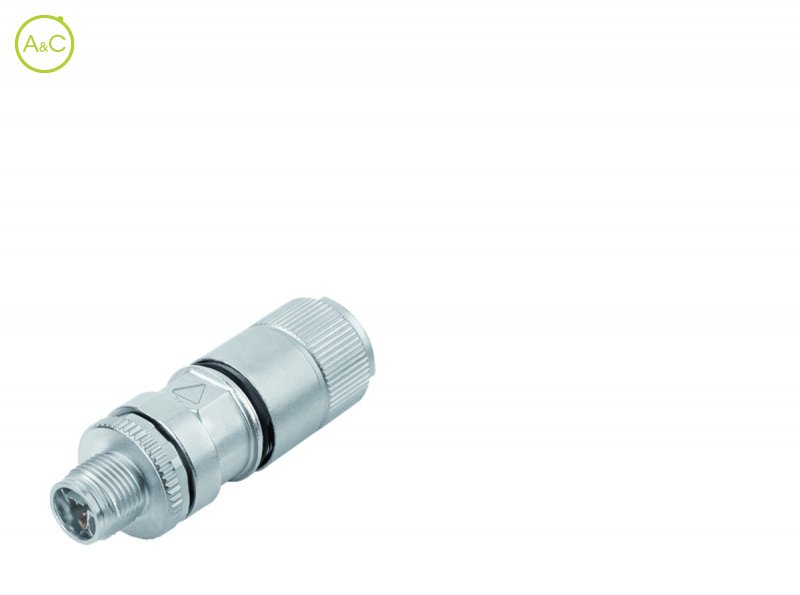

| Article Number | 99 3787 810 08 |

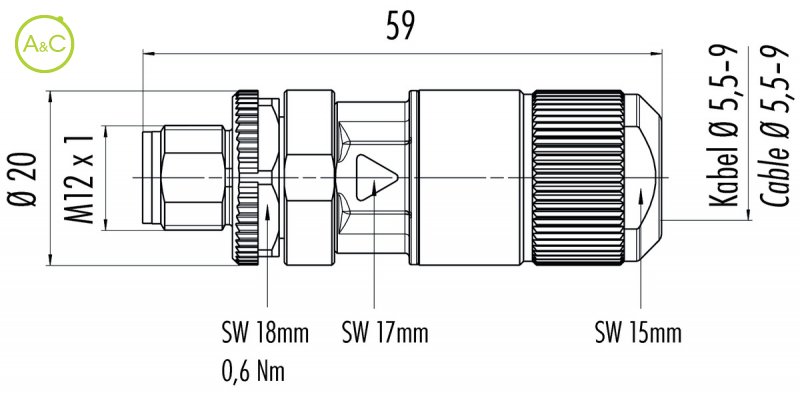

| Connector Diameter | 20 mm |
| Number Of Contacts | 8 contacts |
| Connector Locking System | Screw (M12-X) |
| Termination | Screw terminal |
| Protection Degree | IP67 |
| Mating Cycles | >100 times |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 50 AC, 60 DC |
| Rated Impuls Voltage | 800 V |
| Pollution Degree | 3 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 0.5 A |
| Max. Contact Resistance | 10 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Material Of Insert | PA |
| Material Of Housing | Brass nickel plated / zinc diecasting nickel plated |
| Cable Outlet | 5,5-9 mm |
| Product sheet | Download product sheet |
