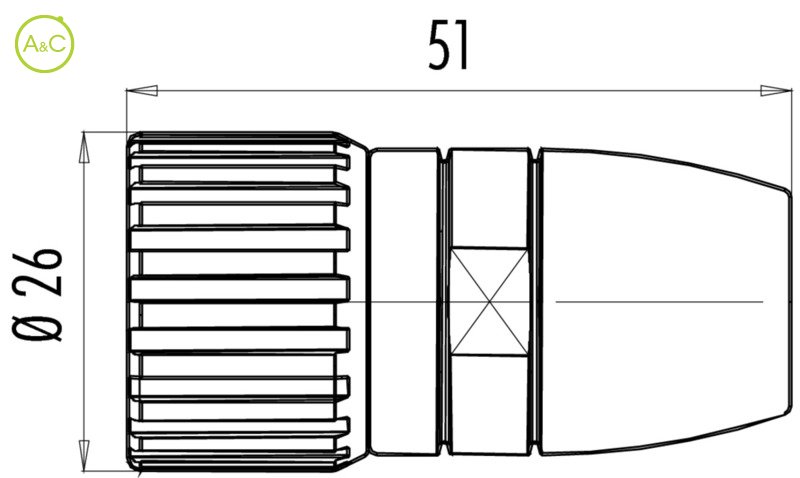

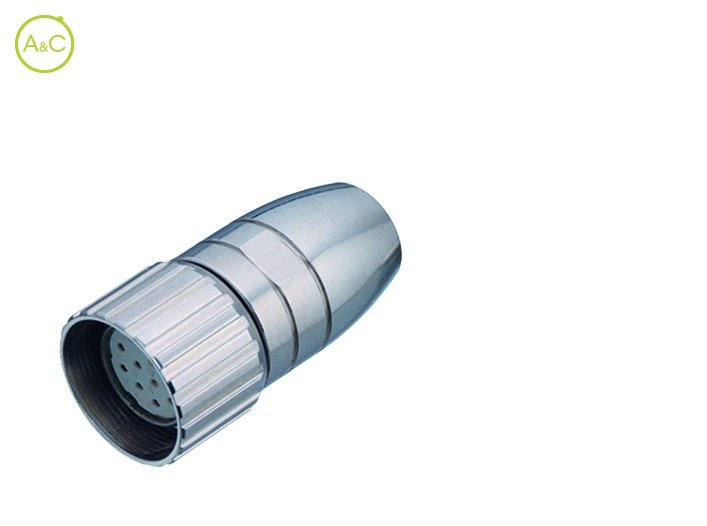

Female cable connector

Heeft u nog vragen over dit product?

Meer info over dit merk:

Article Number	99 4646 00 06
Connector Diameter	26 mm
Number Of Contacts	6 contacts, clockwise
Connector Locking System	Screw (M23)
Termination	Solder
Wire Section	2.5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+125 °C
Lower Temperature	-20 °C
Rated Voltage	300
Rated Impuls Voltage	2500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	20 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA66
Material Of Housing	CuZn (Brass, nickel plated)
Cable Outlet	6-10 mm
Remark *	*Earth sleeves with seals have to be ordered seperately
Product sheet	Download product sheet

Article Number	99 4620 00 09	99 4620 10 09
Connector Diameter	26 mm	26 mm
Number Of Contacts	9 contacts, clockwise	9 contacts, anticlockwise
Connector Locking System	Screw (M23)	Screw (M23)
Termination	Solder	Solder
Wire Section	8 x 1,5 / 1 x 2,5 mm²	8 x 1,5 / 1 x 2,5 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-20 °C	-20 °C
Rated Voltage	300	300
Rated Impuls Voltage	2500 V	2500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	8 x 8 / 1 x 20 A	8 x 8 / 1 x 20 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT/PA66	PBT/PA66
Material Of Housing	CuZn (Brass, nickel plated)	CuZn (Brass, nickel plated)
Cable Outlet	6-10 mm	6-10 mm
Remark *	*Earth sleeves with seals have to be ordered seperately	*Earth sleeves with seals have to be ordered seperately
Product sheet	Download product sheet	Download product sheet

Article Number	99 4622 00 12	99 4622 10 12
Connector Diameter	26 mm	26 mm
Number Of Contacts	12 contacts, clockwise	12 contacts, anticlockwise
Connector Locking System	Screw (M23)	Screw (M23)
Termination	Solder	Solder
Wire Section	1 mm²	1 mm²
Protection Degree	IP67	IP67
Mating Cycles	>50 times	>50 times
Upper Temperature	+125 °C	+125 °C
Lower Temperature	-20 °C	-20 °C
Rated Voltage	150	150
Rated Impuls Voltage	1500 V	1500 V
Pollution Degree	3	3
Overvoltage Categorie	II	II
Material Group	III	III
Rated Current (40°)	8 A	8 A
Max. Contact Resistance	3 mΩ	3 mΩ
Material Of Contact	CuSn (Bronze)	CuSn (Bronze)
Plating	Au (Gold)	Au (Gold)
Material Of Insert	PBT/PA66	PBT/PA66
Material Of Housing	CuZn (Brass, nickel plated)	CuZn (Brass, nickel plated)
Cable Outlet	6-10 mm	6-10 mm
Remark *	*Earth sleeves with seals have to be ordered seperately	*Earth sleeves with seals have to be ordered seperately
Product sheet	Download product sheet	Download product sheet

Article Number	99 4624 00 16
Connector Diameter	26 mm
Number Of Contacts	16 contacts, clockwise
Connector Locking System	Screw (M23)
Termination	Solder
Wire Section	1 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+125 °C
Lower Temperature	-20 °C
Rated Voltage	150
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	8 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA66
Material Of Housing	CuZn (Brass, nickel plated)
Cable Outlet	6-10 mm
Remark *	*Earth sleeves with seals have to be ordered seperately
Product sheet	Download product sheet

Article Number	99 4644 00 19
Connector Diameter	26 mm
Number Of Contacts	19 contacts, clockwise
Connector Locking System	Screw (M23)
Termination	Solder
Wire Section	16 x 1 / 3 x 1,5 mm²
Protection Degree	IP67
Mating Cycles	>50 times
Upper Temperature	+125 °C
Lower Temperature	-20 °C
Rated Voltage	150
Rated Impuls Voltage	1500 V
Pollution Degree	3
Overvoltage Categorie	II
Material Group	III
Rated Current (40°)	16 x 8 / 3 x 10 A
Max. Contact Resistance	3 mΩ
Material Of Contact	CuSn (Bronze)
Plating	Au (Gold)
Material Of Insert	PBT/PA66
Material Of Housing	CuZn (Brass, nickel plated)
Cable Outlet	6-10 mm
Remark *	*Earth sleeves with seals have to be ordered seperately
Product sheet	Download product sheet

Eigenschappen verschillen tussen varianten en subvarianten
