Binder
Number Of Poles
- 3
- 4
- 5

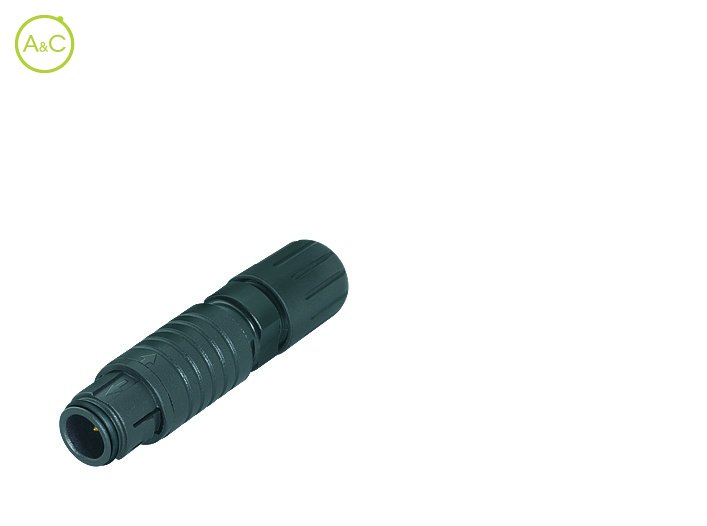

| Article Number | 99 4705 00 03 |

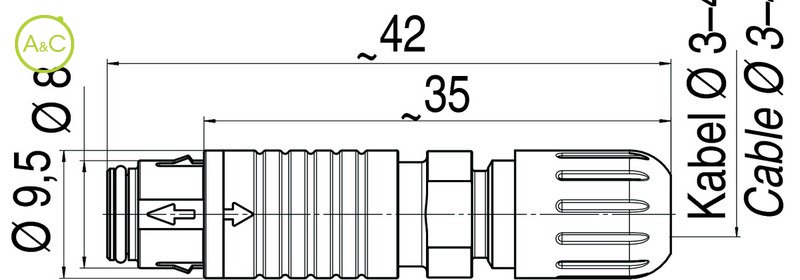

| Connector Diameter | 9.5 mm |
| Number Of Contacts | 3 contacts |
| Connector Locking System | Micro Push-Pull |
| Termination | Solder |
| Wire Section | 0.14 mm² |
| Protection Degree | IP67 |
| Mating Cycles | >1000 times |
| Upper Temperature | +80 °C |
| Lower Temperature | -40 °C |
| Rated Voltage | 125 |
| Rated Impuls Voltage | 1500 V |
| Pollution Degree | 2 |
| Overvoltage Categorie | II |
| Material Group | II |
| Rated Current (40°) | 1 A |
| Max. Contact Resistance | 8 mΩ |
| Material Of Contact | CuZn (Brass) |
| Plating | Au (Gold) |
| Material Of Insert | PA |
| Material Of Housing | PA |
| Cable Outlet | 3-4 mm |
| Product sheet | Download product sheet |
Eigenschappen verschillen tussen varianten en subvarianten
