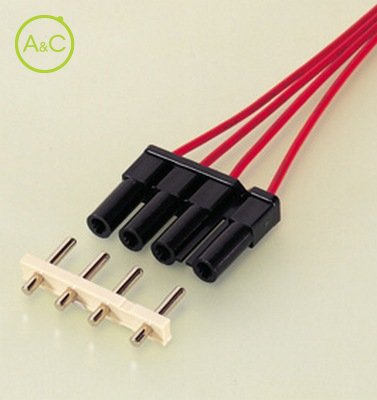

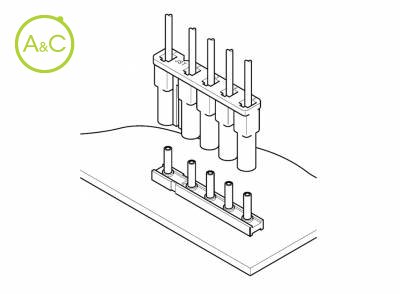

This connector can be connected for headers having 2.36mm (.093") diameter pins. The mating section of the contact has a triangular configuration so that the terminal grips the round mating pin at three points. One position has a different pitch than the others. This provides the connector with polarization and prevents misinsertion. Three-point contact The mating section of the contact has a triangular configuration so that the terminal grips the round mating pin at three points. Furthermore, this contact keeps its high force after mating and unmating many times, thus assuring high reliability. Anti-misinsertion construction The pitch between positions 1 and 2 of the housings and the headers having three or more circuits is 10.0mm (.394"), while the pitch of the other circuits is 8.0mm (.315"). This provides polarization which in turn prevents mismating the connector. Flux entry prevention The solder side of the header pins are closed so as to completely prevent flux or solder from entering. The tight press-fit of the pin into the header insulator also prevents flux from coming up the pin. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R75121 RoHS Compliant
