Top Entry Shrouded Header THT With Boss High box type

  • VH CONNECTOR
Download product sheet

Number Of Poles

  • 1
  • 2
  • 3
  • 4
  • 5
  • 6
  • 7
  • 8
Article Number BH1P-VH-1
Number Of Contacts 1
Upper Temperature +85 °C
Lower Temperature -25 °C
General Description 3.96mm Pitch Disconnectable Crimp Style
Connection Type Printed Circuit Board Connectors
Pitch / Style 3.96 mm
Rated Current (ac/dc) 7.0 A
Rated Voltage (ac/dc) 250 V
Pcb Mount Style Through-hole Technology (THT)
Remark Secure locking device
Eigenschappen verschillen tussen varianten en subvarianten

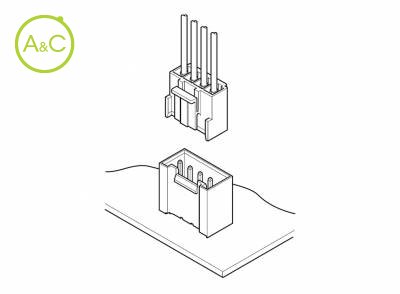

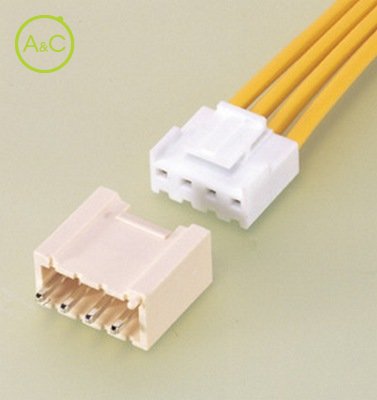

The header is tall and fully shrouded so as to prevent the resin used to coat the PCB coming into contact with the mating pins. Designed for use specifically with resin coated ("potted") PC boards. The header is designed to accept VH mating receptacles. The housing has a lock mechanism which prevents the connector from coming loose due to vibration. The mechanism also prevents misinsertion. Header for 3.96mm (.156") pitch VH connector for use specifically with resin coated ("potted") PC boards This header is tall and fully shrouded so as to prevent the resin used to coat the PC boards from coming into contact with the mating pins. Interchangeability Designed to accept VH mating receptacles. Standards UL Recognized E60389 CSA Certified LR20812 TUV Certified R75122 RoHS Compliant
