Entry
- 1xPG21
- 1xPG29

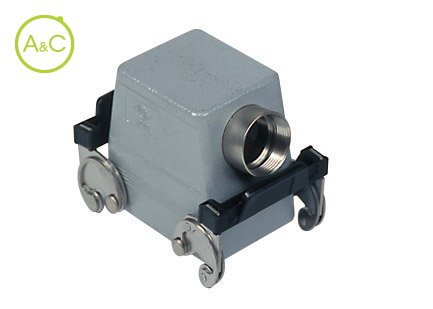

Article Number | CAO 50 X* |
Protection Degree | IP66 |
Material Housing | Aluminium |
Height | 75 mm |
Remark | May be combined with enclosures: CHI 50 CS; CHP 50 CS; MHP 50 CS |
Length | 82 |
Extra Information |
Corrosion resistant UV resistant With interlocking device |
Coating Housing | With powder coating |
Required Inserts | CD 50 P + PE; CDD 76 P + PE; CSAH 32 P + PE; CDA 32 P + PE; CDC 32 P + PE |
Locking Mechanism | Double locking levers |
Operation Lower Temperature | -40 °C |
Operation Upper Temperature | 125 °C |
Position Cable Feed | Side entry |
Width | 71 mm |
Eigenschappen verschillen tussen varianten en subvarianten
