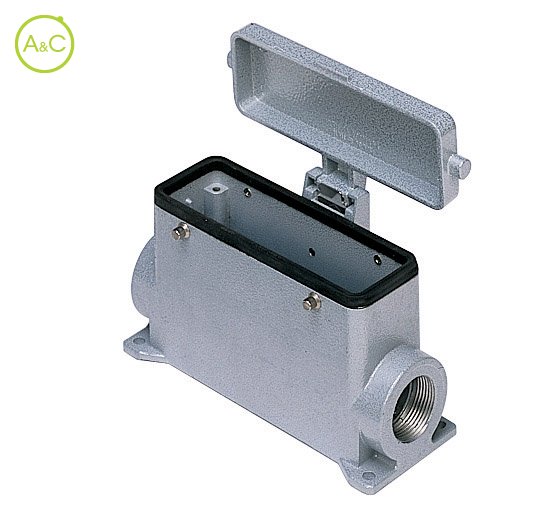

Surface mounting housings, high construction

With 4 pegs and aluminium cover
Aluminium, PG entry

CAP 24 CS

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Entry

1xPG21
1xPG29
2xPG21
2xPG29

Article Number	CAP 24 CS*
Protection Degree	IP65
Material Housing	Aluminium
Height	81 mm
Remark	May be combined with enclosures: CHO 24 X; CAO 24 X; CHV 24 X; CAV 24 X; MHO 24 X; MAO 24 X; MHV 24 X; MAV 24 X
Length	144
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	CAP 24 CS29*
Protection Degree	IP65
Material Housing	Aluminium
Height	81 mm
Remark	May be combined with enclosures: CHO 24 X; CAO 24 X; CHV 24 X; CAV 24 X; MHO 24 X; MAO 24 X; MHV 24 X; MAV 24 X
Length	144
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	57 mm

Article Number	CAP 24 CS2*
Protection Degree	IP65
Material Housing	Aluminium
Height	81 mm
Remark	May be combined with enclosures: CHO 24 X; CAO 24 X; CHV 24 X; CAV 24 X; MHO 24 X; MAO 24 X; MHV 24 X; MAV 24 X
Length	144
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57 mm

Article Number	CAP 24 CS229*
Protection Degree	IP65
Material Housing	Aluminium
Height	81 mm
Remark	May be combined with enclosures: CHO 24 X; CAO 24 X; CHV 24 X; CAV 24 X; MHO 24 X; MAO 24 X; MHV 24 X; MAV 24 X
Length	144
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Two-sided
Width	57 mm

Eigenschappen verschillen tussen varianten en subvarianten
