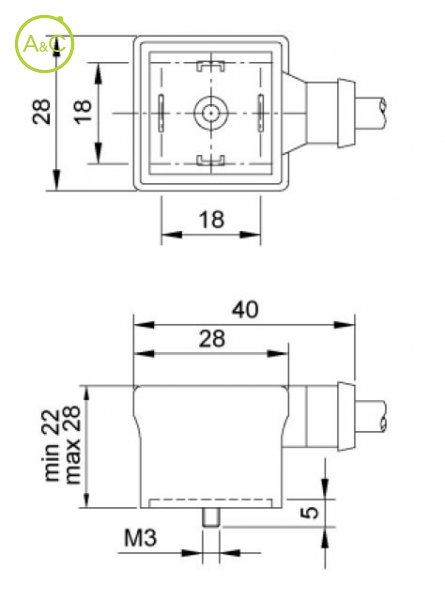

Style A square connector

2 Leds for switching over contacts, switching on 3 and 2

CC - CC11 20R3M

CC - CC11 20R3M

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Housing Material

PUR
TPR

Article Number	CC13 20R3M 514 3000 0	CC13 20R8M 514 3000 0
Protection Degree	IP65*	IP65*
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-40 °C	-40 °C
Contact Type	Fork	Fork
Circuits	4 Leds for switching over contacts, switching on 3 and 2	5 Leds for switching over contacts, switching on 3 and 2
Housing Oil Resistance	Very good	Very good
Housing Hardness	90 shore A	90 shore A
Other Characteristics	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron
Voltage Vdc	10 to 50	10 to 50
Max. Currrent	10 A @40°C	10 A @40°C
Housing Colour	Transparent	Transparent
Remark	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward

Article Number	CC11 20R3M 514 3000 0	CC11 20R8M 514 3000 0
Protection Degree	IP65*	IP65*
Upper Temperature	+70 °C	+70 °C
Lower Temperature	-40 °C	-40 °C
Contact Type	Fork	Fork
Circuits	2 Leds for switching over contacts, switching on 3 and 2	3 Leds for switching over contacts, switching on 3 and 2
Housing Oil Resistance	Occasional contact	Occasional contact
Housing Hardness	73 shore A	73 shore A
Other Characteristics	M3 central screw material: zinc plated iron	M3 central screw material: zinc plated iron
Voltage Vdc	10 to 50	10 to 50
Max. Currrent	10 A @40°C	10 A @40°C
Housing Colour	Black	Black
Remark	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward	The IP65 protection degree is valid only if the connector is mounted with the cable exit not upward

Eigenschappen verschillen tussen varianten en subvarianten
