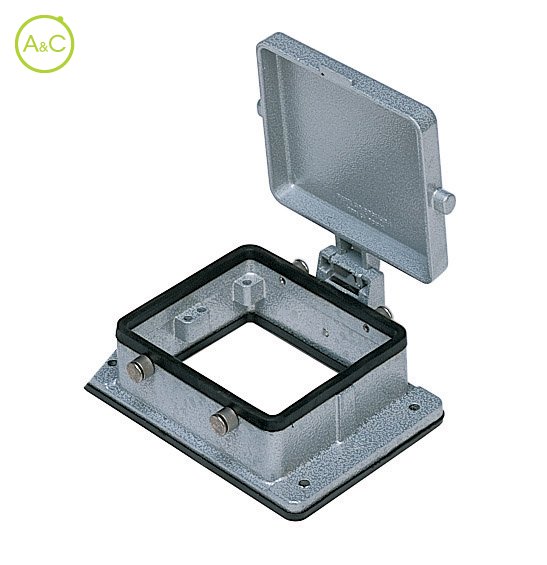

Bulkhead mounting housings

With 4 pegs and cover
Aluminium

CHI 32 CS

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

General

Article Number	CHI 32 CS*
Protection Degree	IP65
Material Housing	Aluminium
Height	35 mm
Remark	May be combined with enclosures: CHO 32 X;CHV 32 X;CFO 32 X;CFV 32 X;MHO 32 X;MHV 32 X;MFO 32X;MFV 32 X
Length	126
Extra Information	Corrosion resistant UV resistant With hinged lid With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 80P+PE; CDD 144P+PE; CDS 54P+PE; CSH 32P+PE; CNE-CSE 32P+PE; CCE 32P+PE; CSS 32P+PE; CTSE 32P+PE; CQE 64P+PE; CMCE 12+4(aux)PE; CME 12+4(aux)P+PE; CMSH 12+4(aux)P+PE; CP 12P+PE; MIXO 4+4 modules; CDHS 54 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Below
Width	92 mm

Eigenschappen verschillen tussen varianten en subvarianten
