Ilme
- General

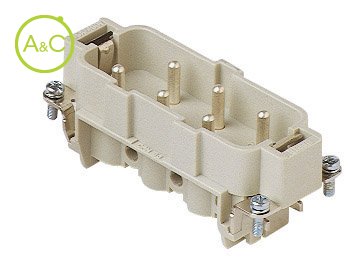

| Article Number | CPM 06 |
| Pollution Degree | 3 |
| Number Of Poles | 6 |
| Connection Type | Screw connection |
| Contact Type | Male |
| Extra Information | With protective conductor |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Min. Cross Section Without End Sleeve | 1.5 mm² |
| Max. Cross Section Without End Sleeve | 6 mm² |
| Required Housing |
C-type size 77.27 C7 size 77.27 Simplex size 77.27 V-type size 77.27 BIG size 77.27 T-type size 77.27 T-type/W size 77.27 T-type/H size 77.27 T-type/C size 77.27 W-type size 77.27 EMC size 77.27 Central Lever size 77.27 High protection IP68 LS-type size 77.27 COB size 77.27 |
| Diameter Male Contact | 3.5 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Material Contact | Brass |
| Plating Of Contact | Silver |
| Max. Rated Current | 35 A |
| Nominal Rated Voltage | 690 V |
| Over Voltage Category | III |
| Rated Surge Voltage | 6 kV |
