Ilme
- General

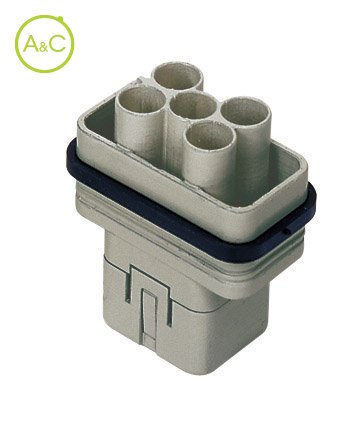

| Article Number | CQM 04/2 |
| Pollution Degree | 3 |
| Number Of Poles | 4 + 2 |
| Connection Type | Crimp connection |
| Contact Type | Male |
| Required Crimp Contacts | CDMA 0.3, CDMA 0.5, CDMA 0.7, CDMA 1.0, CDMA 1.5, CDMA 2.5, CDMD 0.3, CDMD 0.5, CDMD 0.7, CDMD 1.0, CDMD 1.5, CDMD 2.5, CXMA 1.5, CXMA 2.5, CXMA 4.0, CXMA 6.0, CDM2D 0.3, CDM2D 0.5, CDM2D 0.7, CDM2D 1.0, CDM2D 1.5, CDM2D 2.5, CDMJD 0.3, CDMJD 0.5, CDMJD 0.7, CDMJD 1.0, CDMJD 1.5, CDMJD 2.5 |
| Colour | Grey |
| Extra Information |
Contact insert without contacts With protective conductor |
| Ambient Lower Temperature | -40 °C |
| Ambient Upper Temperature | 125 °C |
| Required Housing |
C-type size 32.13 EMC size 32.13 |
| Diameter Male Contact | 4 poles: 4 mm 2 poles: 1,6 mm |
| Inflammability Class Of Insulation Material Acc. With Ul94 | V0 |
| Material Insert | Thermoplastic |
| Max. Rated Current | 4 poles: 40A 2 poles: 10 A |
| Nominal Rated Voltage | 4 poles: 400/690V 2 poles: 250 V |
| Over Voltage Category | III |
| Rated Surge Voltage | 4 poles: 6 kV 2 poles: 4 kV |
Eigenschappen verschillen tussen varianten en subvarianten
