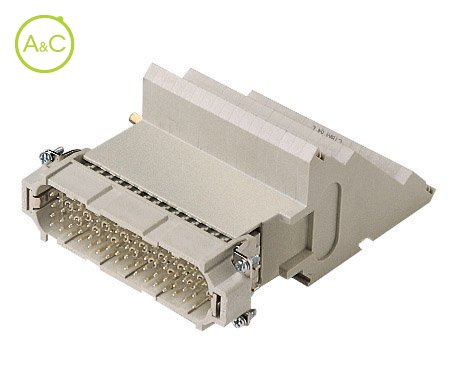

Terminal block inserts, 64P + PE, Spring terminal connection

Heeft u nog vragen over dit product?

Download product sheet

Meer info over dit merk:

Article Number	CTSM 64 L*
Pollution Degree	3
Number Of Poles	64
Connection Type	Spring clamp connection
Contact Type	Male
Remark	Only for bulkhead mounted housings
Extra Information	With protective conductor With wire protection
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	125 °C
Min. Cross Section With End Sleeve	0.14 mm²
Max. Cross Section With End Sleeve	1 mm²
Min. Cross Section Without End Sleeve	0.14 mm²
Max. Cross Section Without End Sleeve	2.5 mm²
Required Housing	C-type size 104.27 C7 size 104.27 Simplex size 104.27 V-type size 104.27 W-type size 104.27 EMC size 104.27 Central Lever size 104.27 LS-type size 104.27
Diameter Male Contact	1.6 mm
Inflammability Class Of Insulation Material Acc. With Ul94	V0
Material Insert	Thermoplastic
Material Contact	Brass
Plating Of Contact	Silver
Max. Rated Current	10 A
Nominal Rated Voltage	250 V
Over Voltage Category	III
Rated Surge Voltage	4 kV

Article Number	CTSM 64 R*
Pollution Degree	3
Number Of Poles	64
Connection Type	Spring clamp connection
Contact Type	Male
Remark	Only for bulkhead mounted housings
Extra Information	With protective conductor With wire protection
Ambient Lower Temperature	-40 °C
Ambient Upper Temperature	125 °C
Min. Cross Section With End Sleeve	0.14 mm²
Max. Cross Section With End Sleeve	1 mm²
Min. Cross Section Without End Sleeve	0.14 mm²
Max. Cross Section Without End Sleeve	2.5 mm²
Required Housing	C-type size 104.27 C7 size 104.27 Simplex size 104.27 V-type size 104.27 W-type size 104.27 EMC size 104.27 Central Lever size 104.27 LS-type size 104.27
Diameter Male Contact	1.6 mm
Inflammability Class Of Insulation Material Acc. With Ul94	V0
Material Insert	Thermoplastic
Material Contact	Brass
Plating Of Contact	Silver
Max. Rated Current	10 A
Nominal Rated Voltage	250 V
Over Voltage Category	III
Rated Surge Voltage	4 kV
