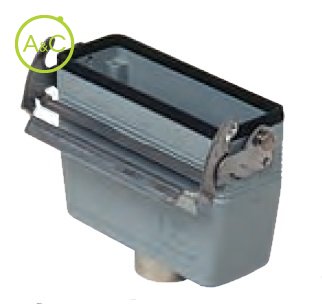

Hoods top entry, high construction

With gasket and 1 lever in stainless steel
Aluminium PG entry

CVAV 06 LG21

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Entry

1xPG21
1xPG29

Article Number	CVAV 06 LG21
Protection Degree	IP67
Material Housing	Aluminium
Height	93 mm
Length	74
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	65 mm

Article Number	CVAV 06 LG29
Protection Degree	IP67
Material Housing	Aluminium
Height	93 mm
Length	74
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CDD 24 P + PE; CDS 9 P + PE; CSH 6 P + PE; CNE 6 P + PE; CSE 6 P + PE; CCE 6 P + PE; CSS 6 P + PE; CQE 10 P + PE; MIXO 2 modules; CDSH 6 P + PE; CDSH 9 P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	65 mm

Eigenschappen verschillen tussen varianten en subvarianten

Accessoires

1 branch-off T-Box coupling

1 branch-off T-Box coupling

1 branch-off T-Box coupling to be fitted on DIN rails

1 branch-off T-Box coupling

2 branch-off T-Box coupling

2 branch-off T-Box coupling

2 branch-off T-Box coupling

2 branch-off T-Box coupling
