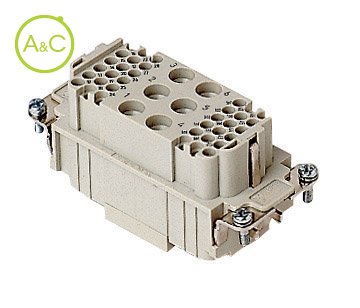

Inserts, 6 + 36P + PE, crimp connections

  • Female inserts for female contacts
Download product sheet
  • General
Article Number CXF 6/36
Pollution Degree 3
Number Of Poles 6 + 36
Connection Type Crimp connection
Contact Type Female
Required Crimp Contacts CDFA 0.3, CDFA 0.5, CDFA 0.7, CDFA 1.0, CDFA 1.5, CDFA 2.5, CDFD 0.3, CDFD 0.5, CDFD 0.7, CDFD 1.0, CDFD 1.5, CDFD 2.5, CDF2D 0.3, CDF2D 0.5, CDF2D 0.7, CDF2D 1.0, CDF2D 1.5, CDF2D 2.5, CDFJD 0.3, CDFJD 0.5, CDFJD 0.7, CDFJD 1.0, CDFJD 1.5, CDFJD 2.5, CXFA 1.5, CXFA 2.5, CXFA 4.0, CXFA 6.0
Extra Information Contact insert without contacts
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 125 °C
Required Housing C-type size 77.27
C7 size 77.27
Simplex size 77.27
V-type size 77.27
BIG size 77.27
T-type size 77.27
T-type/W size 77.27
T-type/H size 77.27
T-type/C size 77.27
W-type size 77.27
EMC size 77.27
Central Lever size 77.27
High protection IP68
LS-type size 77.27
COB size 77.27
Diameter Male Contact 6P : 4 mm 36P: 1,6 mm
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Material Insert Thermoplastic
Max. Rated Current 6P: 40 A 36P: 10 A
Nominal Rated Voltage 6P: 690 V 36P: 160 V
Over Voltage Category IV
Rated Surge Voltage 6P: 8 kV 36P: 2.5 kV
Eigenschappen verschillen tussen varianten en subvarianten
