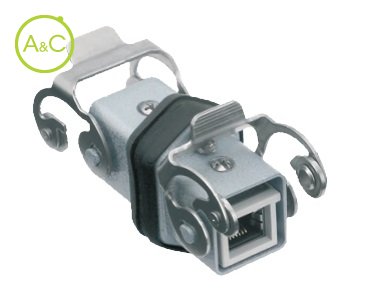

Female RJ 45 coupling, 8 data contacts

  • Metal version
Download product sheet
  • General
Article Number CYG 8 JFA
Pollution Degree 3
Material Housing Metal
Number Of Poles 8
Contact Type Female
Height 51 mm
Length 42
Extra Information With interlocking device
Ambient Lower Temperature -40 °C
Ambient Upper Temperature 120 °C
Category For Ethernet Cable 5E
Inflammability Class Of Insulation Material Acc. With Ul94 V0
Locking Mechanism Single locking lever
Material Insert Duroplast
Material Contact Brass
Plating Of Contact Silver
Nominal Rated Voltage 50 V
Operation Lower Temperature -40 °C
Operation Upper Temperature 120 °C
Over Voltage Category I
Rated Surge Voltage 0.8 kV
Width 30.5 mm
Eigenschappen verschillen tussen varianten en subvarianten
