Dual port connectors

With metal angle brackets, locking clips and UNC 4-40 threads
With stamped contacts

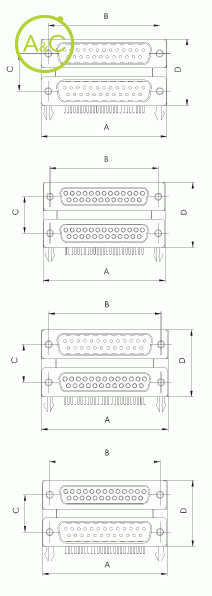

DP 09 P 09 P R4B

DP 09 P 09 P R4B

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Number Of Poles

9
15
25

Article Number	DP 09 P 09 P R4B	DP 09 S 09 S R4B	DP 09 P 09 S R4B	DP 09 S 09 P R4B
Number Of Contacts	9	9	9	9
Upper Temperature	+ 125 °C	+ 125 °C	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy	Brass and Copper alloy	Brass and Copper alloy
Test Voltage	1 V ~	1 V ~	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ	1010 MΩ	1010 MΩ
Current Rating	5	5	5	5
Contact Resistance	≤ 10 m	≤ 10 m	≤ 10 m	≤ 10 m
Gender	Male - Male	Female - Female	male - female	Female - male
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	Dip solder 90°	Dip solder 90°	Dip solder 90°	Dip solder 90°
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
Height Between D-sub Connectors	15,88	15,88	15,88	15,88

Article Number	DP 15 P 15 P R4B	DP 15 S 15 S R4B	DP 15 P 15 S R4B	DP 15 S 15 P R4B
Number Of Contacts	15	15	15	15
Upper Temperature	+ 125 °C	+ 125 °C	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy	Brass and Copper alloy	Brass and Copper alloy
Test Voltage	1 V ~	1 V ~	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ	1010 MΩ	1010 MΩ
Current Rating	5	5	5	5
Contact Resistance	≤ 10 m	≤ 10 m	≤ 10 m	≤ 10 m
Gender	Male - Male	Female - Female	male - female	Female - male
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	Dip solder 90°	Dip solder 90°	Dip solder 90°	Dip solder 90°
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
Height Between D-sub Connectors	15,88	15,88	15,88	15,88

Article Number	DP 25 P 25 P R4B	DP 25 S 25 S R4B	DP 25 P 25 S R4B	DP 25 S 25 P R4B
Number Of Contacts	25	25	25	25
Upper Temperature	+ 125 °C	+ 125 °C	+ 125 °C	+ 125 °C
Lower Temperature	-55 °C	-55 °C	-55 °C	-55 °C
Contact Plating	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold	Gold over Nickel, or selective gold
Contact Material	Brass and Copper alloy	Brass and Copper alloy	Brass and Copper alloy	Brass and Copper alloy
Test Voltage	1 V ~	1 V ~	1 V ~	1 V ~
Insulation Resistance	1010 MΩ	1010 MΩ	1010 MΩ	1010 MΩ
Current Rating	5	5	5	5
Contact Resistance	≤ 10 m	≤ 10 m	≤ 10 m	≤ 10 m
Gender	Male - Male	Female - Female	male - female	Female - male
Insulator Material	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated	Glass fibre reinforced polybutylene-terephtalate (PBTP) self-extinguishing UL 94 V-0 rated
Shell	Steel, tin-plated	Steel, tin-plated	Steel, tin-plated	Steel, tin-plated
Mating And Unimating Force	0.3 - 0.7	0.3 - 0.7	0.3 - 0.7	0.3 - 0.7
Air And Creepage Distance	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated	≥ 0.9 mm, VDE 0110 rated
Termination Type	Dip solder 90°	Dip solder 90°	Dip solder 90°	Dip solder 90°
Quality Class	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles	Class 3 = 50 mating cycles
Height Between D-sub Connectors	15,88	15,88	15,88	15,88

Eigenschappen verschillen tussen varianten en subvarianten
