JST
Color
- Black
- Gray
| Article Number | EX-M26S-152-A121 | EX-M26S-152-A220 | EX-M26S-152-A222 | EX-M26S-152-C222 |
| Number Of Contacts | 26 | 26 | 26 | 26 |
| Upper Temperature | +55 °C | +55 °C | +55 °C | +55 °C |
| General Description | Express Card Connector (1.0mm Pitch) | Express Card Connector (1.0mm Pitch) | Express Card Connector (1.0mm Pitch) | Express Card Connector (1.0mm Pitch) |
| Connection Type | Printed Circuit Board Connectors | Printed Circuit Board Connectors | Printed Circuit Board Connectors | Printed Circuit Board Connectors |
| Pitch / Style | 1.00 mm | 1.00 mm | 1.00 mm | 1.00 mm |
| Rated Current (ac/dc) | 0.75 /line A | 0.75 /line A | 0.75 /line A | 0.75 /line A |
| Pcb Mount Style | Surface Mount Technology (SMT) | Surface Mount Technology (SMT) | Surface Mount Technology (SMT) | Surface Mount Technology (SMT) |
| Remark | Frame mounting type: upper side Off-set size: 0.1 | Frame mounting type: upper side Off-set size: 0.3 | Frame mounting type: upper side Off-set size: 0.08 | Frame mounting type: buttom side Off-set size: 0.08 |
Eigenschappen verschillen tussen varianten en subvarianten

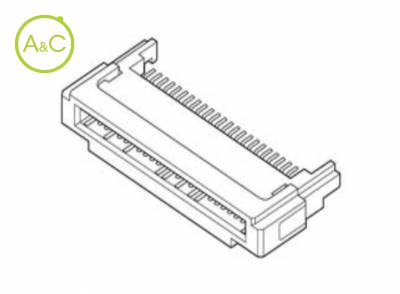

This is the module connector for the Express Card complying with Express Card Standard Ver.1.0.
Complying with PCMCIA Express Card Standard Ver.1.0
This modular connector complies with PCMCIA Express Card Ver.1.0. which has been standardized as next generation of PC Card. It is registered as the Compliant Product in Web site of Express Card. Compliance ID: EC100017
Excellent durability
In order to protect the mating pins at CF card side, the shutter locking mechanism is adopted.
Variation
According to the customer's requirement, the off-set of connector solder tails is enabled.
RoHS Compliant
