High Density connectors solder pot version
Meer info over dit merk:
Provertha
Number Of Poles
- 15
- 26
- 44
- 62
- 78

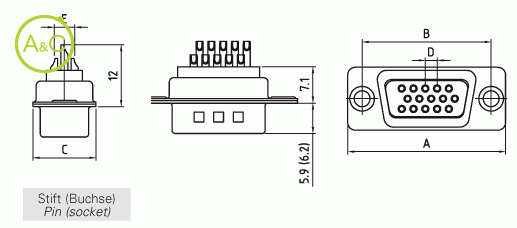

Article Number | HDT 15 51 G. | HT 15 61 G. |
Number Of Contacts | 15 | 15 |
Upper Temperature | +125 °C | +125 °C |
Lower Temperature | -55 °C | -55 °C |
Contact Plating | Mating area: Au over Ni Termination area: Sn over Ni | Mating area: Au over Ni Termination area: Sn over Ni |
Housing Material | St. tinned | St. tinned |
Contact Material | Cu alloy | Cu alloy |
Remark | For the requested quality class please replace the "." at the end of the article no. By using 1,2,3 | For the requested quality class please replace the "." at the end of the article no. By using 1,2,3 |
Insulation Resistance | ≥10 MΩ | ≥10 MΩ |
Contact Resistance | ≤10m | ≤10m |
Gender | Male | Female |
Insulator Material | Plastic, UL 94-V0 rated | Plastic, UL 94-V0 rated |
Mating/unmating Force Fully Loaded Connector | ≤50 | ≤50 |
Air And Creepage Distance | min. 0,6 mm | min. 0,6 mm |
Test Voltage U Eff | 1000 | 1000 |
Working Voltage | 60 | 60 |
Current Rating At 20°c | VDE: 3,5 A CSA: 2,5 A UL: 3 | VDE: 3,5 A CSA: 2,5 A UL: 3 |
Quality Class* | Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles | Class 1 = 500 mating cycles Class 2 = 200 mating cycles Class 3 = 50 mating cycles |
Eigenschappen verschillen tussen varianten en subvarianten
