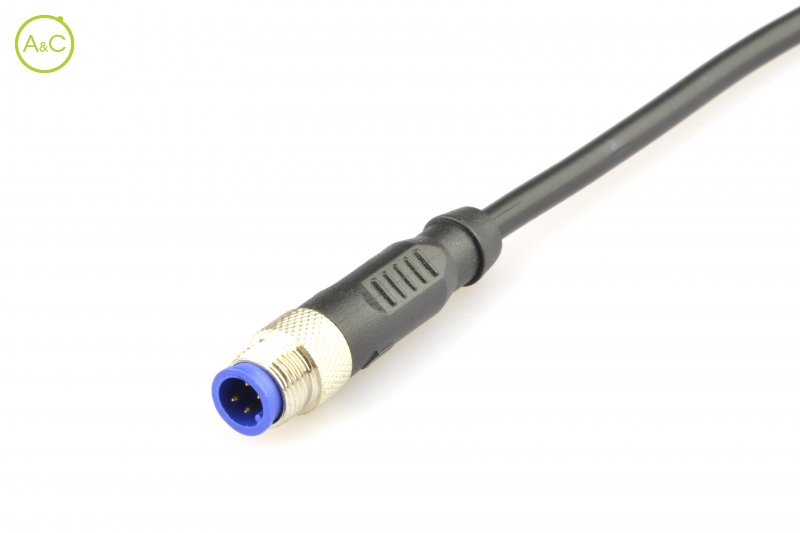

Mini C Male cable connector

Heeft u nog vragen over dit product?

Download product sheet Download step file

Meer info over dit merk:

Article Number	L209CG P 00 A0 1000	L209CG P 00 AW 1000
Color	Red	Red
Connector Diameter	9 mm	9 mm
Wire Section	0.2 mm²	0.14 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IP67	IP67
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	Copper Alloy	Copper Alloy
Cable Diameter	3.7 mm	2.4 mm
Insulation Wire	PVC	Teflon
Remark	Other cable length/type on request	Other cable length/type on request
Rated Current	2 A	2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	Gold over Nickel	Gold over Nickel
Fitting Length	68.6 mm	68.6 mm
Material Jacket	PVC	TPU

Article Number	L309CG P 00 A1 1000	L309CG P 00 AX 1000
Color	Yellow	Yellow
Connector Diameter	9 mm	9 mm
Wire Section	0.2 mm²	0.14 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IP67	IP67
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	Copper Alloy	Copper Alloy
Cable Diameter	3.7 mm	3.7 mm
Insulation Wire	PVC	Teflon
Remark	Other cable length/type on request	Other cable length/type on request
Rated Current	2 A	2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	Gold over Nickel	Gold over Nickel
Fitting Length	68.6 mm	68.6 mm
Material Jacket	PVC	TPU

Article Number	L409CG P 00 A2 1000	L409CG P 00 AY 1000
Color	Blue	Blue
Connector Diameter	9 mm	9 mm
Wire Section	0.14 mm²	0.14 mm²
Cable Length	1000 mm	1000 mm
Protection Degree	IP67	IP67
Mating Cycles	200 times	200 times
Upper Temperature	80 °C	80 °C
Lower Temperature	-25 °C	-25 °C
Rated Voltage	48 V AC / 60 V DC	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ	≤10 mΩ
Material Of Contact	Copper Alloy	Copper Alloy
Cable Diameter	3.7 mm	3.7 mm
Insulation Wire	PVC	Teflon
Remark	Other cable length/type on request	Other cable length/type on request
Rated Current	2 A	2 A
Max. Insulation Resistance	≥20 MΩ	≥20 MΩ
Contact Plating	Gold over Nickel	Gold over Nickel
Fitting Length	68.6 mm	68.6 mm
Material Jacket	PVC	TPU

Article Number	L509CG P 00 A3 1000
Color	Green
Connector Diameter	9 mm
Wire Section	0.14 mm²
Cable Length	1000 mm
Protection Degree	IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Cable Diameter	3.7 mm
Insulation Wire	PVC
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	68.6 mm
Material Jacket	PVC

Article Number	L609CG P 00 A4 1000
Color	Purple
Connector Diameter	9 mm
Wire Section	0.14 mm²
Cable Length	1000 mm
Protection Degree	IP67
Mating Cycles	200 times
Upper Temperature	80 °C
Lower Temperature	-25 °C
Rated Voltage	48 V AC / 60 V DC
Max. Contact Resistance	≤10 mΩ
Material Of Contact	Copper Alloy
Cable Diameter	3.7 mm
Insulation Wire	PVC
Remark	Other cable length/type on request
Rated Current	2 A
Max. Insulation Resistance	≥20 MΩ
Contact Plating	Gold over Nickel
Fitting Length	68.6 mm
Material Jacket	PVC

Eigenschappen verschillen tussen varianten en subvarianten
