Number Of Poles
- 3

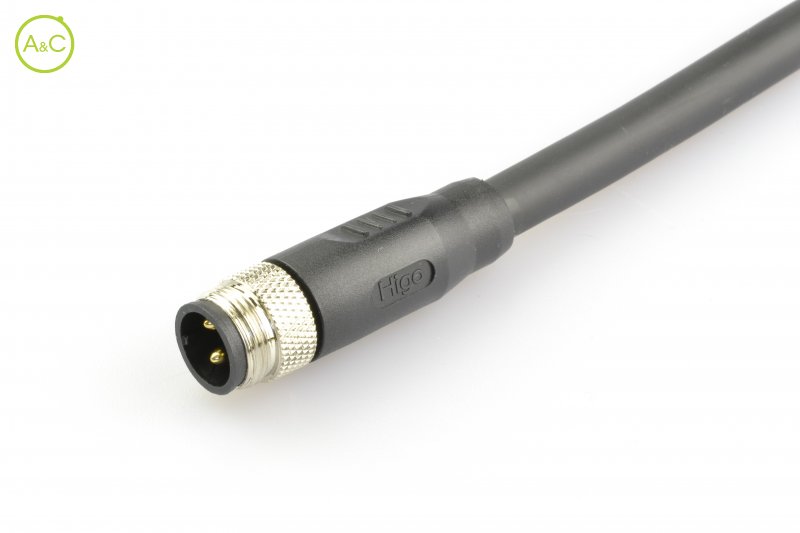

Article Number | L315AG P 01 B8 1000 |
Color | Black |
Connector Diameter | 15 mm |
Wire Section | 3 x 4,0 mm² |
Cable Length | 1000 mm |
Protection Degree | IP67 |
Mating Cycles | 200 times |
Upper Temperature | 80 °C |
Lower Temperature | -25 °C |
Rated Voltage | 48 V AC / 60 V DC |
Max. Contact Resistance | ≤10 mΩ |
Material Of Contact | Brass |
Cable Diameter | 9 mm |
Insulation Wire | Teflon |
Remark | Other cable length/type on request |
Rated Current | 35 A |
Max. Insulation Resistance | ≥20 MΩ |
Contact Plating | Gold over Nickel |
Fitting Length | 90 mm |
Material Jacket | PVC |
Eigenschappen verschillen tussen varianten en subvarianten
