Higo
Number Of Poles
- 6(2+4)
| Article Number | L615AG C 03 00 0000 |
| Color | Black |

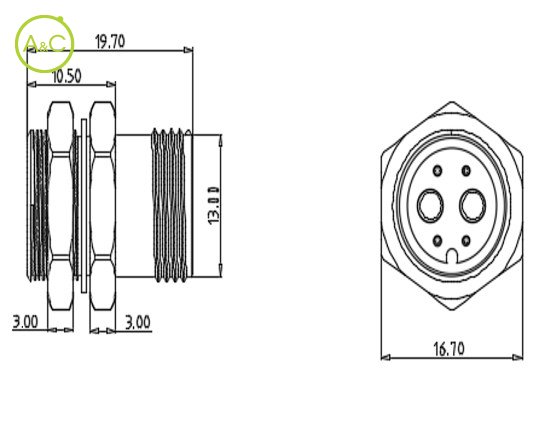

| Connector Diameter | 16.7 mm |
| Protection Degree | IP67 |
| Mating Cycles | 200 times |
| Upper Temperature | 80 °C |
| Lower Temperature | -25 °C |
| Rated Voltage | 48 V AC / 60 V DC |
| Max. Contact Resistance | ≤10 mΩ |
| Material Of Contact | Phosphor bronze |
| Remark | Other cable length/type on request |
| Rated Current | 45 / 2 A |
| Max. Insulation Resistance | ≥20 MΩ |
| Contact Plating | Gold over Nickel |
| Contact Type | Solder cup contacts |
Eigenschappen verschillen tussen varianten en subvarianten
