Hoods with 2 levers, high construction

Side entry
Aluminium, Metric entry

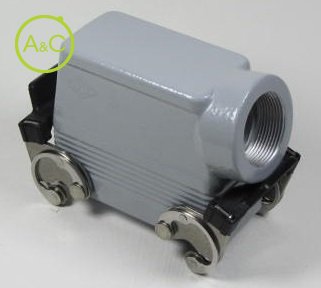

MAO 24 X32

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Entry

1xM32
1xM40

Article Number	MAO 24 X32*
Protection Degree	IP66
Material Housing	Aluminium
Height	76 mm
Remark	May be combined with enclosures: CHI 24 CS; CHI 24 CP; CHI 24 C; CHP 24 CS; CHP 24 CP; CHP 24 C; CAP 24 CS; CAP 24 CP; CAP 24 C; MHP 24 CS; MHP 24 CP; MAP 24 CS; MAP 24 CP
Length	120
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	59 mm

Article Number	MAO 24 X40*
Protection Degree	IP66
Material Housing	Aluminium
Height	76 mm
Remark	May be combined with enclosures: CHI 24 CS; CHI 24 CP; CHI 24 C; CHP 24 CS; CHP 24 CP; CHP 24 C; CAP 24 CS; CAP 24 CP; CAP 24 C; MHP 24 CS; MHP 24 CP; MAP 24 CS; MAP 24 CP
Length	120
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 64P + PE; CDD 108 P + PE; CDS 42P + PE; CSH 24P + PE; CNE-CSE 24P + PE; CCE 24P + PE; CSS 24P + PE; CQE 46P + PE; CQEE 64P + PE; CMCE 10+2 (aux)P + PE; CMSH 10+2 (aux)P + PE; CX 4/8 and 6/6P + PE; MIXO 6 modules; CDSH 42 P + PE
Locking Mechanism	Double locking levers
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Side entry
Width	59 mm

Eigenschappen verschillen tussen varianten en subvarianten

Accessoires

Covers with 4 pegs and gasket
