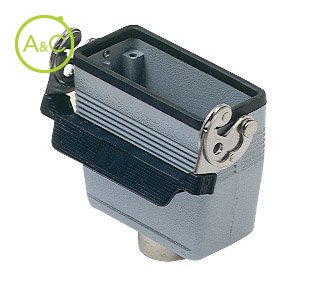

Hoods with 1 lever and gasket, high construction

Top entry
Aluminium, Metric entry

MAV 16 LG25

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Entry

1XM32
1xM25
1xM40

Article Number	MAV 16 LG32
Protection Degree	IP66
Material Housing	Aluminium
Height	97 mm
Length	109.5
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	43 mm

Article Number	MAV 16 LG25
Protection Degree	IP66
Material Housing	Aluminium
Height	97 mm
Length	109.5
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	43 mm

Article Number	MAV 16 LG40
Protection Degree	IP66
Material Housing	Aluminium
Height	97 mm
Length	109.5
Extra Information	Corrosion resistant UV resistant With interlocking device
Coating Housing	With powder coating
Required Inserts	CD 40 P + PE; CDD 72 P + PE; CDS 27 P + PE; CSH 16 P + PE; CNE-CSE 16 P + PE; CCE 16 P + PE; CSS 16 P + PE; CQE 32 P + PE; CQEE 40 P + PE; CMCE-CMSH 6+2 (aux) P + PE; CP 6 P + PE; CX 6/36 and 12/2 P + PE; CX 4/0 and 4/2 P + PE; Mixo 4 modules; CDSH 27 P + PE; CX 6+12P + PE
Locking Mechanism	Single locking lever
Operation Lower Temperature	-40 °C
Operation Upper Temperature	125 °C
Position Cable Feed	Top entry
Width	43 mm

Eigenschappen verschillen tussen varianten en subvarianten
