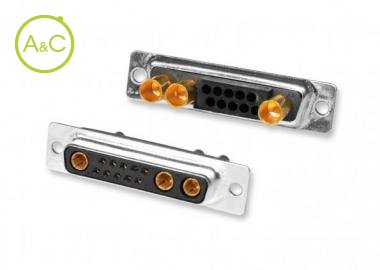

- MDT3W3P
Terug naar productoverzicht

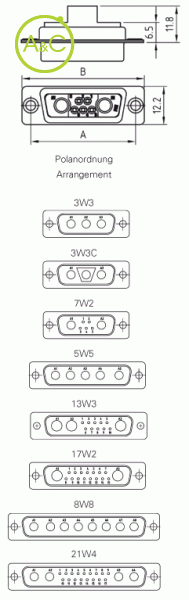

Contact Arrangement
- 3W3
- 3W3C
- 5W5
- 7W2
- 8W8
- 13W3
- 17W2
- 21W4
Article Number | MDT3W3P | MT3W3S |
Upper Temperature | High power contacts: +125 °C Coax contacts: +125 °C | High power contacts: +125 °C Coax contacts: +125 °C |
Lower Temperature | High power contacts: -55 °C Coax contacts: -55 °C | High power contacts: -55 °C Coax contacts: -55 °C |
Housing Material | / | / |
Insulation Resistance | High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ | High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ |
Contact Resistance | High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m | High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m |
Gender | Male | Female |
Insulator Material | / | / |
Retaining Clip Material | High power contacts: CuBE Coax Contacts: CuBE | High power contacts: CuBE Coax Contacts: CuBE |
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) | High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) | High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) |
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) | / | / |
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) | / | / |
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) | / | / |
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) | / | / |
Air And Creepage Distance | High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm | High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm |
Article Number | MDT3W3CP | MT3W3CS |
Upper Temperature | High power contacts: +125 °C Coax contacts: +125 °C | High power contacts: +125 °C Coax contacts: +125 °C |
Lower Temperature | High power contacts: -55 °C Coax contacts: -55 °C | High power contacts: -55 °C Coax contacts: -55 °C |
Housing Material | / | / |
Insulation Resistance | High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ | High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ |
Contact Resistance | High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m | High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m |
Gender | Male | Female |
Insulator Material | / | / |
Retaining Clip Material | High power contacts: CuBE Coax Contacts: CuBE | High power contacts: CuBE Coax Contacts: CuBE |
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) | High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) | High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) |
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) | / | / |
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) | / | / |
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) | / | / |
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) | / | / |
Air And Creepage Distance | High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm | High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm |
Article Number | MDT5W5P | MT5W5S |
Upper Temperature | High power contacts: +125 °C Coax contacts: +125 °C | High power contacts: +125 °C Coax contacts: +125 °C |
Lower Temperature | High power contacts: -55 °C Coax contacts: -55 °C | High power contacts: -55 °C Coax contacts: -55 °C |
Housing Material | / | / |
Insulation Resistance | High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ | High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ |
Contact Resistance | High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m | High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m |
Gender | Male | Female |
Insulator Material | / | / |
Retaining Clip Material | High power contacts: CuBE Coax Contacts: CuBE | High power contacts: CuBE Coax Contacts: CuBE |
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) | High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) | High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) |
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) | / | / |
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) | / | / |
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) | / | / |
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) | / | / |
Air And Creepage Distance | High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm | High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm |
Article Number | MDT7W2P | MT7W2S |
Upper Temperature | Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C | Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C |
Lower Temperature | Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C | Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C |
Housing Material | Signal contacts: St. tinned | Signal contacts: St. tinned |
Insulation Resistance | Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ | Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ |
Contact Resistance | Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m | Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m |
Gender | Male | Female |
Insulator Material | Signal contacts: PBT GF UL 94-V0 | Signal contacts: PBT GF UL 94-V0 |
Retaining Clip Material | High power contacts: CuBE Coax Contacts: CuBE | High power contacts: CuBE Coax Contacts: CuBE |
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) | Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) | Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) |
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) | Signal contacts: ≤ 50 | Signal contacts: ≤ 50 |
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) | Signal contacts: ≤ 83 | Signal contacts: ≤ 83 |
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) | Signal contacts: ≤ 123 | Signal contacts: ≤ 123 |
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) | Signal contacts: ≤ 167 | Signal contacts: ≤ 167 |
Air And Creepage Distance | Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm | Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm |
Article Number | MDT8W8P | MT8W8S |
Upper Temperature | High power contacts: +125 °C Coax contacts: +125 °C | High power contacts: +125 °C Coax contacts: +125 °C |
Lower Temperature | High power contacts: -55 °C Coax contacts: -55 °C | High power contacts: -55 °C Coax contacts: -55 °C |
Housing Material | / | / |
Insulation Resistance | High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ | High Power contacts: ≥ 10 Coax Contacts: ≥ 10 MΩ |
Contact Resistance | High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m | High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m |
Gender | Male | Female |
Insulator Material | / | / |
Retaining Clip Material | High power contacts: CuBE Coax Contacts: CuBE | High power contacts: CuBE Coax Contacts: CuBE |
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) | High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) | High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) |
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) | / | / |
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) | / | / |
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) | / | / |
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) | / | / |
Air And Creepage Distance | High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm | High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm |
Article Number | MDT13W3P | MT13W3S |
Upper Temperature | Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C | Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C |
Lower Temperature | Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C | Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C |
Housing Material | Signal contacts: St. tinned | Signal contacts: St. tinned |
Insulation Resistance | Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ | Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ |
Contact Resistance | Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m | Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m |
Gender | Male | Female |
Insulator Material | Signal contacts: PBT GF UL 94-V0 | Signal contacts: PBT GF UL 94-V0 |
Retaining Clip Material | High power contacts: CuBE Coax Contacts: CuBE | High power contacts: CuBE Coax Contacts: CuBE |
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) | Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) | Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) |
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) | Signal contacts: ≤ 50 | Signal contacts: ≤ 50 |
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) | Signal contacts: ≤ 83 | Signal contacts: ≤ 83 |
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) | Signal contacts: ≤ 123 | Signal contacts: ≤ 123 |
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) | Signal contacts: ≤ 167 | Signal contacts: ≤ 167 |
Air And Creepage Distance | Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm | Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm |
Article Number | MDT17W2P | MT17W2S |
Upper Temperature | Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C | Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C |
Lower Temperature | Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C | Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C |
Housing Material | Signal contacts: St. tinned | Signal contacts: St. tinned |
Insulation Resistance | Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ | Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ |
Contact Resistance | Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m | Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m |
Gender | Male | Female |
Insulator Material | Signal contacts: PBT GF UL 94-V0 | Signal contacts: PBT GF UL 94-V0 |
Retaining Clip Material | High power contacts: CuBE Coax Contacts: CuBE | High power contacts: CuBE Coax Contacts: CuBE |
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) | Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) | Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) |
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) | Signal contacts: ≤ 50 | Signal contacts: ≤ 50 |
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) | Signal contacts: ≤ 83 | Signal contacts: ≤ 83 |
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) | Signal contacts: ≤ 123 | Signal contacts: ≤ 123 |
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) | Signal contacts: ≤ 167 | Signal contacts: ≤ 167 |
Air And Creepage Distance | Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm | Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm |
Article Number | MDT21W4P | MT21W4S |
Upper Temperature | Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C | Signal contacts: +125 °C High power contacts: +125 °C Coax contacts: +125 °C |
Lower Temperature | Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C | Signal contacts: -55 °C High power contacts: -55 °C Coax contacts: -55 °C |
Housing Material | Signal contacts: St. tinned | Signal contacts: St. tinned |
Insulation Resistance | Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ | Signal contacts: ≤ 10 G Ω High Power contacts: ≥ 10 G Ω Coax Contacts: ≥ 10 MΩ |
Contact Resistance | Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m | Signal contacts: ≤ 10 m / ≤ 25 m (9-37pos)/≤ 35 m (50pos) Ω High power contacts: ≤ 1 m Ω Coax contacts: - Inner conductor ≤ 10 m Ω - Outer conductor ≤ 3 m |
Gender | Male | Female |
Insulator Material | Signal contacts: PBT GF UL 94-V0 | Signal contacts: PBT GF UL 94-V0 |
Retaining Clip Material | High power contacts: CuBE Coax Contacts: CuBE | High power contacts: CuBE Coax Contacts: CuBE |
Mating/unmating Force Fully Loaded Connector With Shell Size 1 (9 Pin Sub-d) | Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) | Signal contacts: ≤ 30 N High power contacts: ≤ 10 (per contact)N Coax contacts: ≤ 10 (per contact) |
Mating/unmating Force Fully Loaded Connector With Shell Size 2 (15 Pin Sub-d) | Signal contacts: ≤ 50 | Signal contacts: ≤ 50 |
Mating/unmating Force Fully Loaded Connector With Shell Size 3 (25pin Sub-d) | Signal contacts: ≤ 83 | Signal contacts: ≤ 83 |
Mating/unmating Force Fully Loaded Connector With Shell Size 4 (37 Pin Sub-d) | Signal contacts: ≤ 123 | Signal contacts: ≤ 123 |
Mating/unmating Force Fully Loaded Connector With Shell Size 5 (50 Pin Sub-d) | Signal contacts: ≤ 167 | Signal contacts: ≤ 167 |
Air And Creepage Distance | Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm | Signal contacts: - Contact - Contact: min. 1 mm - Contact - Ground: min. 1,2 mm High power contacts: ≥ 1 mm Coax Contacts: ≥ 1 mm |
Eigenschappen verschillen tussen varianten en subvarianten
