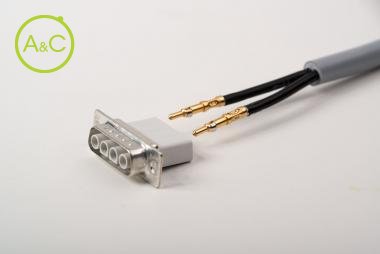

600V D-Sub Crimp connectors

  • For power applications
Download product sheet

Contacts

  • stamped
  • turned
Article Number MDT4W4P30 MT4W4S30
Number Of Contacts 4 4
Upper Temperature +125 °C +125 °C
Lower Temperature -55 °C -55 °C
Pollution Degree 1 1
Operating Voltage 630 630
Over Voltage Category I: 2,5 kV II: 4 kV acc. To EC 60 664 I: 2,5 kV II: 4 kV acc. To EC 60 664
Gender Male Female
Insulator Material PA GF UL 94-V0 PA GF UL 94-V0
Retaining Clip Material CuBE alloy CuBE alloy
Creepage/clearance ≥ 1,8 mm /3,2 ≥ 1,8 mm /3,2
Termination Type Crimp Crimp
Eigenschappen verschillen tussen varianten en subvarianten
