JST
Number Of Poles
- 8
| Article Number | NACS-08-E |
| Number Of Contacts | 8 |
| Upper Temperature | +85 °C |
| Lower Temperature | -40 °C |
| General Description | Disconnectable Crimp Style |
| Connection Type | Automotive |
| Pitch / Style | 2.54 mm |
| Rated Current (ac/dc) | 5 A |
| Rated Voltage (ac/dc) | 14 V |
Eigenschappen verschillen tussen varianten en subvarianten

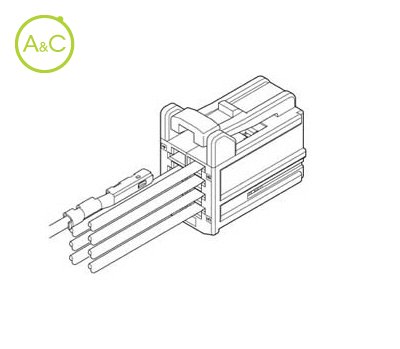

Low profile dual row connector compliant with the USCAR performance specifications.
For general automotive applications.
Compact design, Independent secondary lock (Terminal Position Assurance)
Accept 0.64 to 1.2mm Blade
2x4 circuit design
Standards
USCAR
RoHS Compliant
