RARSF CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	RARSFC-1V
Number Of Contacts	1
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	Right Angle RAST 5 Connector
Connection Type	Chain Terminals/Splices
Pitch / Style	5.00 mm
Rated Current (ac/dc)	15 A
Rated Voltage (ac/dc)	250 V

Article Number	RARSFC-2V
Number Of Contacts	2
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	Right Angle RAST 5 Connector
Connection Type	Chain Terminals/Splices
Pitch / Style	5.00 mm
Rated Current (ac/dc)	15 A
Rated Voltage (ac/dc)	250 V

Article Number	RARSFC-3V
Number Of Contacts	3
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	Right Angle RAST 5 Connector
Connection Type	Chain Terminals/Splices
Pitch / Style	5.00 mm
Rated Current (ac/dc)	15 A
Rated Voltage (ac/dc)	250 V

Article Number	RARSFC-4V
Number Of Contacts	4
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	Right Angle RAST 5 Connector
Connection Type	Chain Terminals/Splices
Pitch / Style	5.00 mm
Rated Current (ac/dc)	15 A
Rated Voltage (ac/dc)	250 V

Article Number	RARSFC-5V
Number Of Contacts	5
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	Right Angle RAST 5 Connector
Connection Type	Chain Terminals/Splices
Pitch / Style	5.00 mm
Rated Current (ac/dc)	15 A
Rated Voltage (ac/dc)	250 V

Article Number	RARSFC-6V
Number Of Contacts	6
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	Right Angle RAST 5 Connector
Connection Type	Chain Terminals/Splices
Pitch / Style	5.00 mm
Rated Current (ac/dc)	15 A
Rated Voltage (ac/dc)	250 V

Article Number	RARSFC-7V
Number Of Contacts	7
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	Right Angle RAST 5 Connector
Connection Type	Chain Terminals/Splices
Pitch / Style	5.00 mm
Rated Current (ac/dc)	15 A
Rated Voltage (ac/dc)	250 V

Article Number	RARSFC-8V
Number Of Contacts	8
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	Right Angle RAST 5 Connector
Connection Type	Chain Terminals/Splices
Pitch / Style	5.00 mm
Rated Current (ac/dc)	15 A
Rated Voltage (ac/dc)	250 V

Article Number	RARSFC-9V
Number Of Contacts	9
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	Right Angle RAST 5 Connector
Connection Type	Chain Terminals/Splices
Pitch / Style	5.00 mm
Rated Current (ac/dc)	15 A
Rated Voltage (ac/dc)	250 V

Article Number	RARSFC-10V
Number Of Contacts	10
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	Right Angle RAST 5 Connector
Connection Type	Chain Terminals/Splices
Pitch / Style	5.00 mm
Rated Current (ac/dc)	15 A
Rated Voltage (ac/dc)	250 V

Article Number	RARSFC-11V
Number Of Contacts	11
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	Right Angle RAST 5 Connector
Connection Type	Chain Terminals/Splices
Pitch / Style	5.00 mm
Rated Current (ac/dc)	15 A
Rated Voltage (ac/dc)	250 V

Article Number	RARSFC-12V
Number Of Contacts	12
Upper Temperature	+105 °C
Lower Temperature	-40 °C
General Description	Right Angle RAST 5 Connector
Connection Type	Chain Terminals/Splices
Pitch / Style	5.00 mm
Rated Current (ac/dc)	15 A
Rated Voltage (ac/dc)	250 V

Eigenschappen verschillen tussen varianten en subvarianten

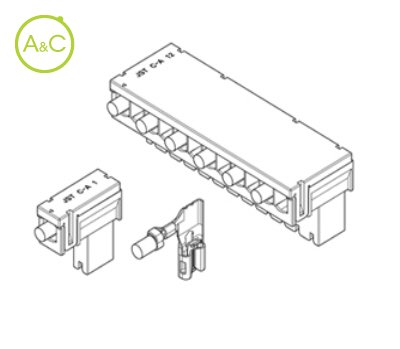

JST introduces the RARSF (RAST) connector, a right angle RAST 5 connector system designed for home appliances. This RAST 5 system consists of a combination of terminal and housing, which provides easy mating to a standard male tab direct to the pcb. The right angle design of the RARSF connector allows ease of harness routing in tight places, and the locking mechanism prevents accidental disengagement of the contact from the mating tab. Standard and custom key options are available upon request and a range of coloured covers are available which assist in the assembly process when using multiple connectors on the same harness. The RARSF connectors are suitable for a wire range of 18 to 14 AWG, with a current rating of 15A, and available in 1 to 12 circuits. Right angle design Low insertion force Positive locking Keying options Standards UL Recognized E60389 RoHS Compliant
