Connector Gold-plated

RC CONNECTOR

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

JST

Number Of Poles

Article Number	RC-D10
Number Of Contacts	10
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.54mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.54 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	300 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RC-D14
Number Of Contacts	14
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.54mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.54 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	300 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RC-D16
Number Of Contacts	16
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.54mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.54 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	300 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RC-D20
Number Of Contacts	20
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.54mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.54 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	300 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RC-D26
Number Of Contacts	26
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.54mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.54 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	300 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RC-D34
Number Of Contacts	34
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.54mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.54 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	300 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RC-D40
Number Of Contacts	40
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.54mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.54 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	300 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RC-D50
Number Of Contacts	50
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.54mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.54 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	300 V
Pcb Mount Style	Through-hole Technology (THT)

Article Number	RC-D60
Number Of Contacts	60
Upper Temperature	+105 °C
Lower Temperature	-55 °C
General Description	2.54mm Pitch Board-in IDC
Connection Type	Printed Circuit Board Connectors
Pitch / Style	2.54 mm
Rated Current (ac/dc)	1.0 A
Rated Voltage (ac/dc)	300 V
Pcb Mount Style	Through-hole Technology (THT)

Eigenschappen verschillen tussen varianten en subvarianten

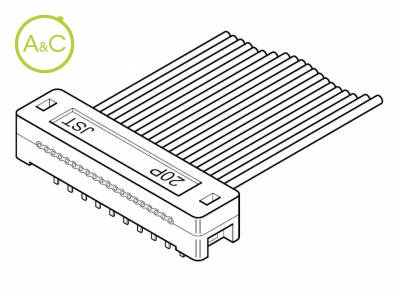

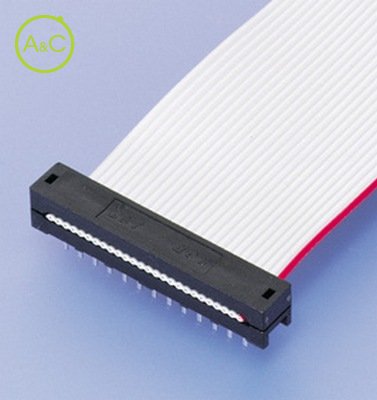

The RC connector is a board-in type insulation displacement connector for 1.27mm (.050") pitch ribbon cables. The number of positions match the RA diSConnectable connector series so that they can be used as a pair on opposite ends of a harness. Low profile with high-density mounting The RC board-in connector has a low profile with a mounting height of 6.8mm (.268") and a width of 6.54mm (.257"). It allows 2.54mm (.100") pitch grid wiring for high density. Use with an RA connector This connector and a RA diSConnectable connector can be used as a pair on opposite ends of a harness to reduce costs and mounting space. Two kinds of plating The contact comes in gold and tin-plated versions. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
