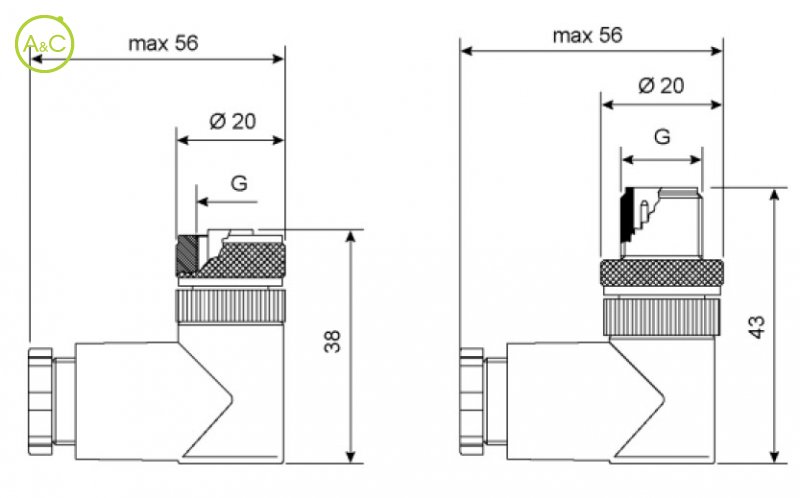

Male round connector

Nickel plated metal nut + plastic body

RDK - RCKM 00310 071

RDK - RCKM 00310 071

Heeft u nog vragen over dit product?

Contacteer onze connector specialist

Vraag een offerte aan

Download product sheet

Meer info over dit merk:

Number Of Poles

3
4
5
12

Article Number	RCKM 00310 071
Number Of Contacts	3
Protection Degree	IP67*
Upper Temperature	+90 °C
Lower Temperature	-25 °C
Cable Diameter	4-6,5 mm
Fixing Thread	M12
Housing Material	Plastic
Housing Oil Resistance	Very good
Contact Material	Optalloy
Max. Wire Section	0,75 mm²
Locking Nut Material	Metal nickel plated
Voltage Vdc	1 to 250
Voltage Vac	1 to 250
Max. Currrent	4 A @40°C
Contact Gender	M
Coding	A
Cabling System	Screw vite
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDKM 00410 070	RDKM 00410 090	RDKM 00410 120	RDKM 00415 070
Number Of Contacts	4	4	4	4
Protection Degree	IP67*	IP67*	IP67*	IP67*
Upper Temperature	+90 °C	+90 °C	+90 °C	+50 °C
Lower Temperature	-25 °C	-25 °C	-25 °C	-5 °C
Cable Diameter	4-6,5 mm	6-8 mm	Double cable 2,1-3 4-5 mm	3-5,1 mm
Fixing Thread	M12	M12	M12	M12
Housing Material	Plastic	Plastic	Plastic	Plastic
Housing Oil Resistance	Very good	Very good	Very good	Very good
Contact Material	Optalloy	Optalloy	Optalloy	Optalloy
Max. Wire Section	0,75 mm²	0,75 mm²	0,75 mm²	0,34 (Ø 1-1,6mm) mm²
Locking Nut Material	Metal nickel plated	Metal nickel plated	Metal nickel plated	Metal nickel plated
Voltage Vdc	1 to 250	1 to 250	1 to 250	1 to 50
Voltage Vac	1 to 250	1 to 250	1 to 250	1 to 50
Max. Currrent	4 A @40°C	4 A @40°C	4 A @40°C	4 A @40°C
Contact Gender	M	M	M	M
Coding	A	A	A	A
Cabling System	Screw vite	Screw vite	Screw vite	Piercing
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDKM 00510 070	RDKM 00510 090	RDKM 00510 120
Number Of Contacts	5	5	5
Protection Degree	IP67*	IP67*	IP67*
Upper Temperature	+90 °C	+90 °C	+90 °C
Lower Temperature	-25 °C	-25 °C	-25 °C
Cable Diameter	4-6,5 mm	6-8 mm	Double cable 2,1-3 4-5 mm
Fixing Thread	M12	M12	M12
Housing Material	Plastic	Plastic	Plastic
Housing Oil Resistance	Very good	Very good	Very good
Contact Material	Optalloy	Optalloy	Optalloy
Max. Wire Section	0,75 mm²	0,75 mm²	0,75 mm²
Locking Nut Material	Metal nickel plated	Metal nickel plated	Metal nickel plated
Voltage Vdc	1 to 60	1 to 60	1 to 60
Voltage Vac	1 to 60	1 to 60	1 to 60
Max. Currrent	4 A @40°C	4 A @40°C	4 A @40°C
Contact Gender	M	M	M
Coding	A	A	A
Cabling System	Screw vite	Screw vite	Screw vite
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Article Number	RDKM 01211 090
Number Of Contacts	12
Protection Degree	IP67*
Upper Temperature	+90 °C
Lower Temperature	-25 °C
Cable Diameter	6-8 mm
Fixing Thread	M12
Housing Material	Plastic
Housing Oil Resistance	Very good
Contact Material	Golden over nickel plated CuZn
Max. Wire Section	0,25 mm²
Locking Nut Material	Metal nickel plated
Voltage Vdc	1 to 30
Voltage Vac	1 to 30
Max. Currrent	1 A @40°C
Contact Gender	M
Coding	A
Cabling System	Screw vite
Remark	The protection degree level is guaranteed only when correctly assembled with Shield's couterpart

Eigenschappen verschillen tussen varianten en subvarianten
