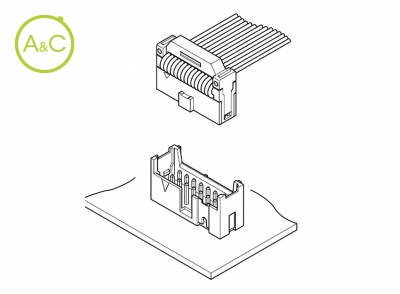

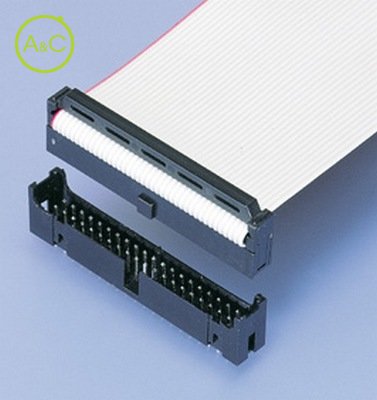

This low profile box header is best suited for high-density, low-cost internal connections in office automation equipment. Interchangeability This header was designed to mate with the receptacle side of connectors conforming to MIL-C-83503, including JST's RA connector. Low cost The posts are selectively gold-plated at their mating end and tin-plated on their solder side. This reduces costs without hampering the connector's effectiveness. (Headers with completely tin-plated contacts are also available.) Low-profile The header has a low profile with a mounting height of 19.0mm (.748") when a plug with a strain relief is used. This height is approximately 10mm (.394") lower than the mounting height of the conventional MIL-C-83503 header and thus maximizes the efficient use of space in electronic equipment. No contamination by flux or cleaning fluids Sufficient stand-off area is provided to prevent flux and cleaning fluid contamination. Standards UL Recognized E60389 CSA Certified LR20812 RoHS Compliant
